Circuit Diagram: Notes

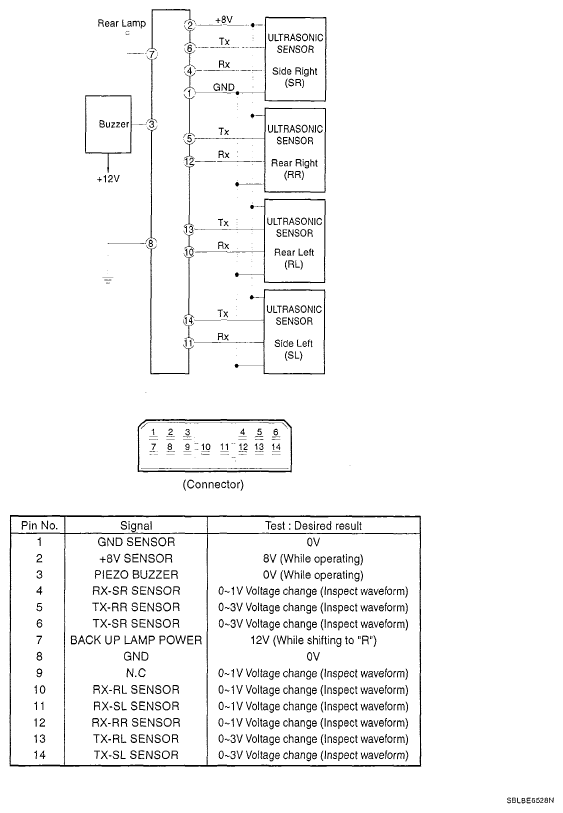

Fig 1: Body Electrical System Circuit Diagram

G05119858

Courtesy of KIA MOTORS AMERICA, INC.
