Audio Unit: Removal

Disconnect the negative (-) battery terminal.
Remove the center fascia lower panel (A) (Refer to the CRASH PAD in ) after pulling it by using regular screw driver (-) at part (A). Take care of fixing clips (B).

Fig 1: Identifying Fixing Clips
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center fascia panel (A) after loosening the screws. Avoid damaging retaining clips.

Fig 2: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

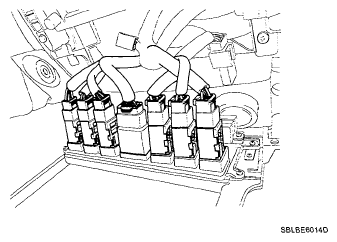

Remove the connectors of center fascia panel.

Fig 3: Identifying Connectors Of Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

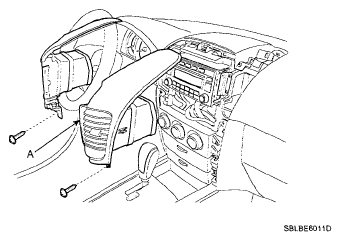

Remove the mounting screws then remove the center air vent (A).

Fig 4: Identifying Center Air Vent
Courtesy of KIA MOTORS AMERICA, INC.

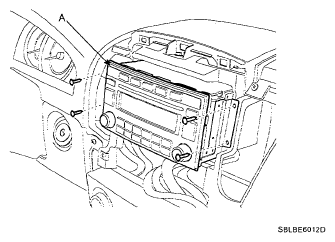

Remove the mounting screws then remove the audio unit (A).

Fig 5: Identifying Audio Unit
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio unit after disconnecting the audio connectors and cable.

Fig 6: Identifying Audio Connectors And Cable
Courtesy of KIA MOTORS AMERICA, INC.
