Home
>>
Kia
>>
2008
>>
Sorento Base, A5SR1
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Body Electrical System
>>
Audio System
>>
Audio Unit
>>
Components
Audio Unit: Components

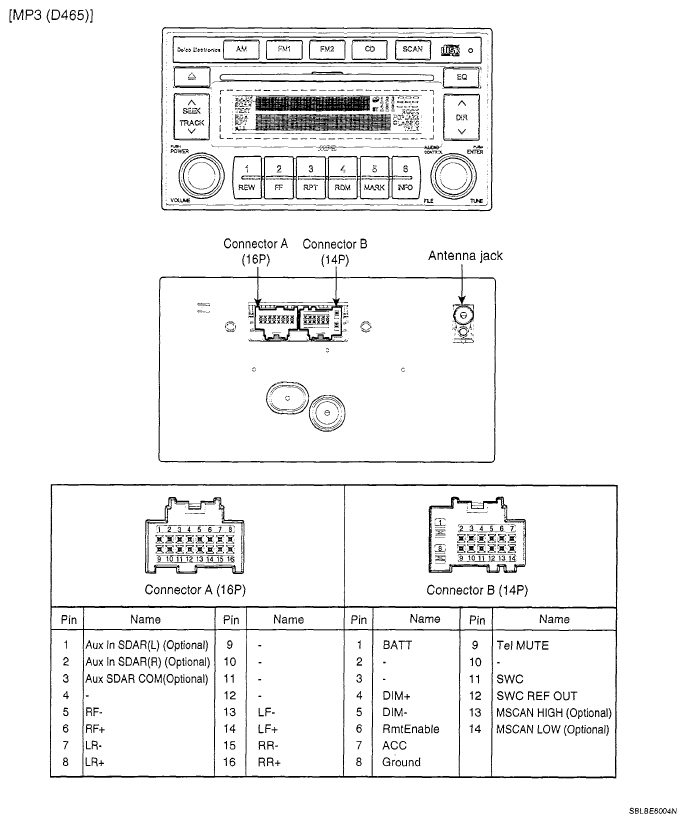

Fig 1: Identifying Audio Unit Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying Audio Unit Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
