Anti-Lock Braking System Control Module: Components

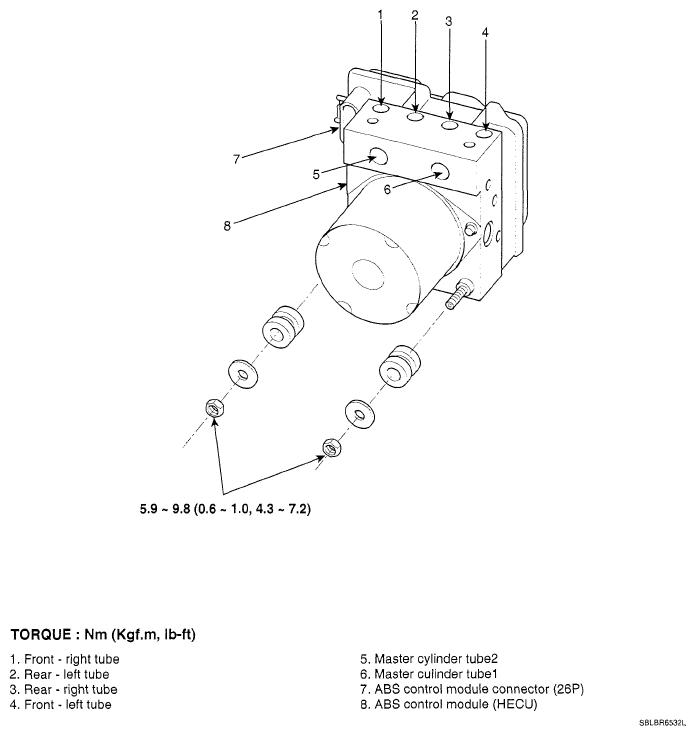

Fig 1: Anti-Lock Braking Replacement Components With Torque Specifications

G05119665

Courtesy of KIA MOTORS AMERICA, INC.
