Removal And Installation

Disconnect negative battery cable.
Remove door inner handle cover.
1. Remove door inner handle cover screw (1).
2. Remove inner handle cover.

  Fig 1: Removing Door Inner Handle Cover
  Courtesy of KIA MOTORS AMERICA, INC.
Remove outside rearview mirror garnish.
1. Remove garnish from door frame.

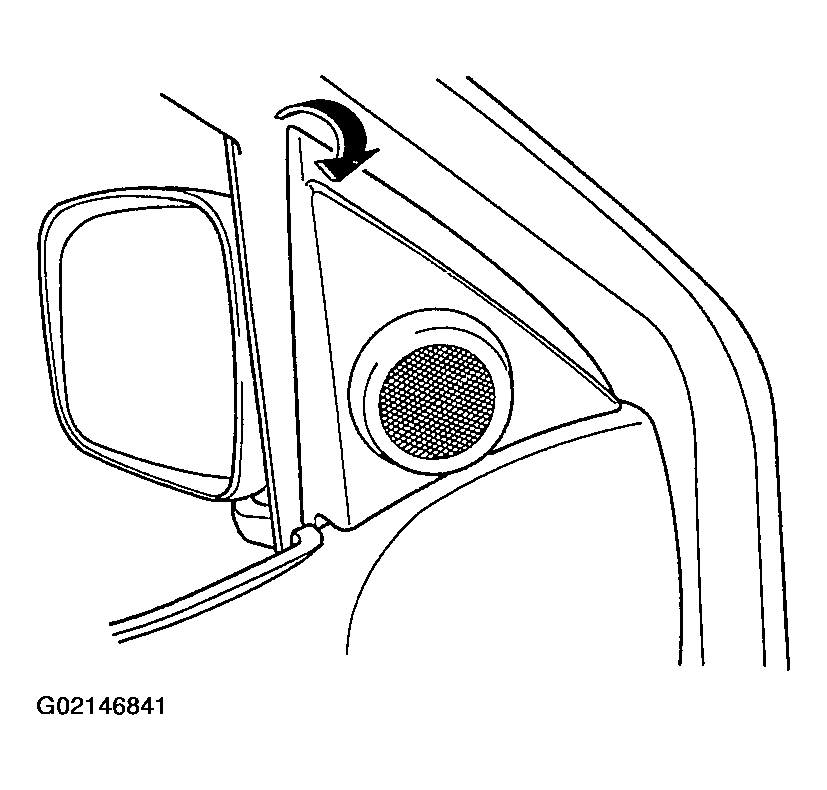

  Fig 2: Removing Rearview Mirror Garnish
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect electrical connector.
Remove assist grip cover, (only passenger side)
1. Remove assist grip cover.
2. Remove screws (2).

  Fig 3: Removing Assist Grip Cover
  Courtesy of KIA MOTORS AMERICA, INC.

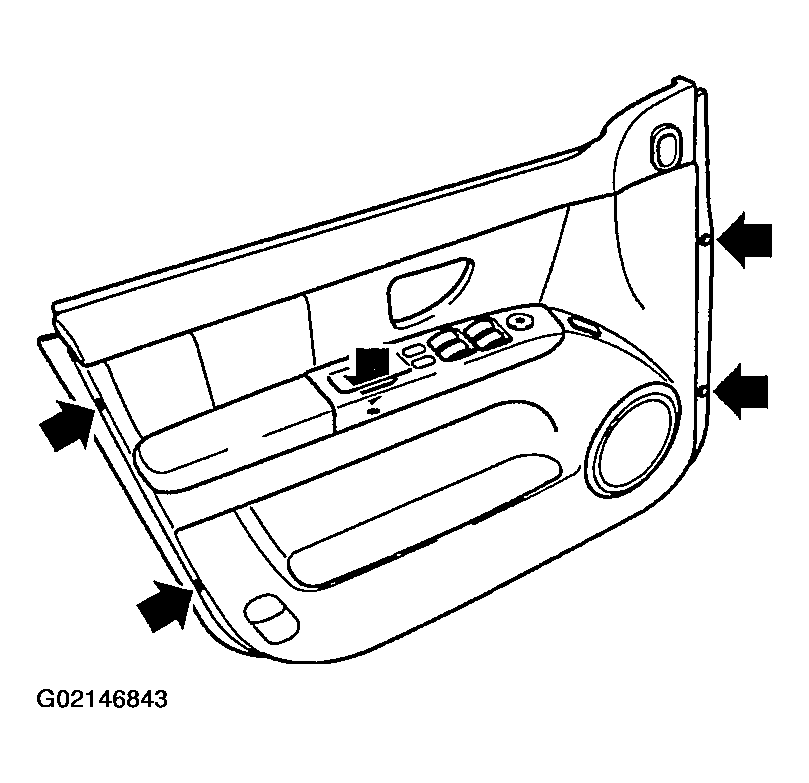

Remove door trim.
1. Remove door pull handle screw (1).
2. Remove door trim fasteners (4).
3. Disconnect electrical connector.

  Fig 4: Removing Door Trim
  Courtesy of KIA MOTORS AMERICA, INC.
Remove door inner handle and pull handle bracket.
1. Remove door lock rod.
2. Remove inner handle bracket screws (3).
3. Remove pull handle bracket screws (2).

  Fig 5: Removing Door Inner Handle & Pull Handle Bracket
  Courtesy of KIA MOTORS AMERICA, INC.

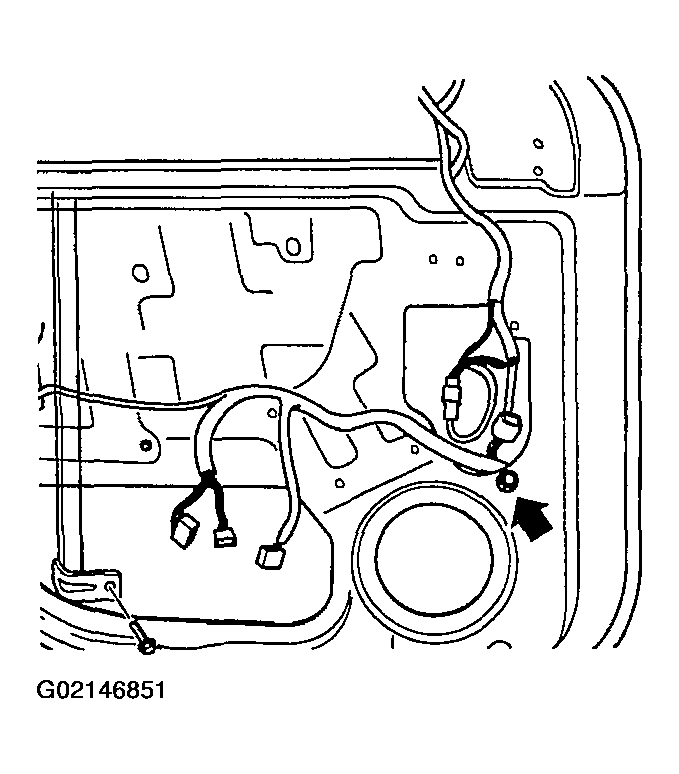

Remove outside rearview mirror folding control unit.
1. Remove screw (1).
2. Disconnect electrical connector.

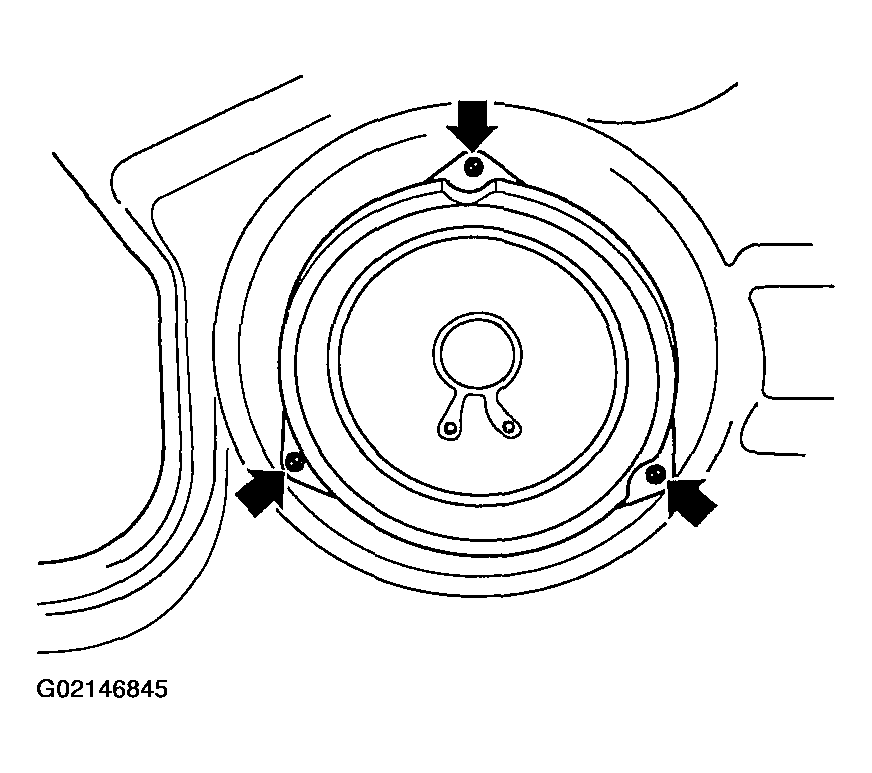

Remove door speaker.
1. Remove door speaker screws (3).
2. Disconnect electrical connector.

  Fig 6: Removing Door Speaker
  Courtesy of KIA MOTORS AMERICA, INC.

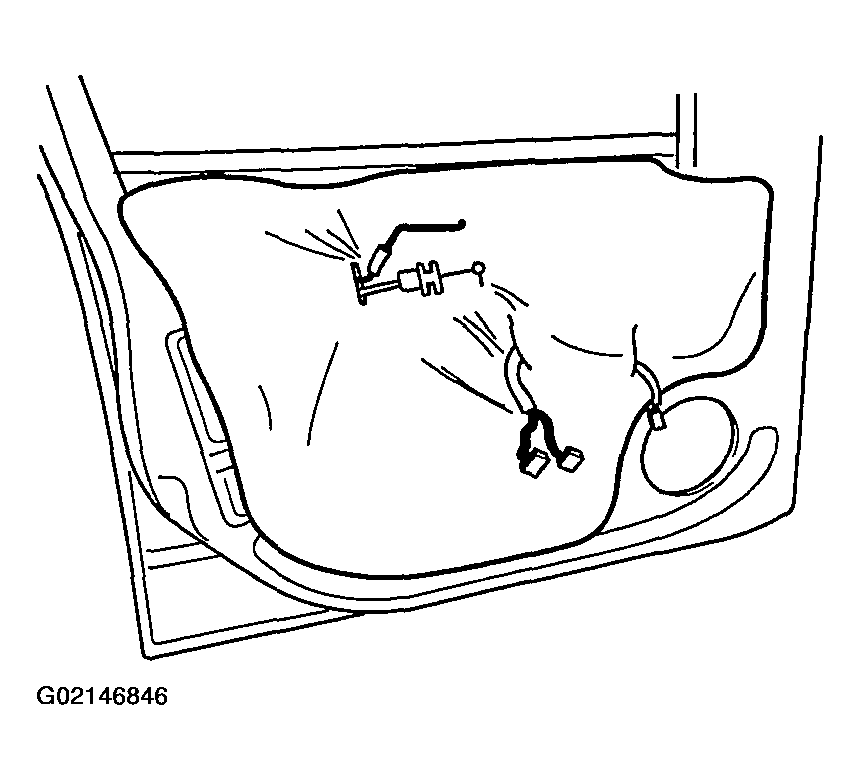

Remove door screen.
NOTE: Peel door screen off carefully so that it can be reused.

Fig 7: Removing Door Screen
Courtesy of KIA MOTORS AMERICA, INC.
Remove window glass.
1. Reconnect power window switch connector.
2. Connect negative battery cable.
3. Turn ignition switch "ON" and position window glass bolt access hole.
4. Turn ignition switch "OFF".

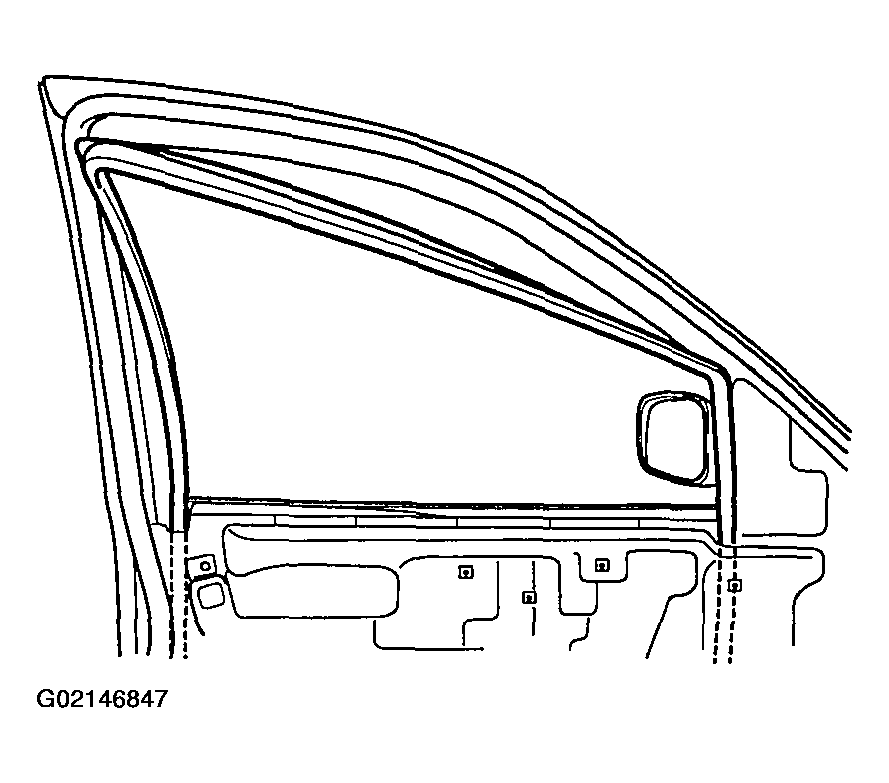

5. Remove glass run channel.

  Fig 8: Removing Window Glass
  Courtesy of KIA MOTORS AMERICA, INC.

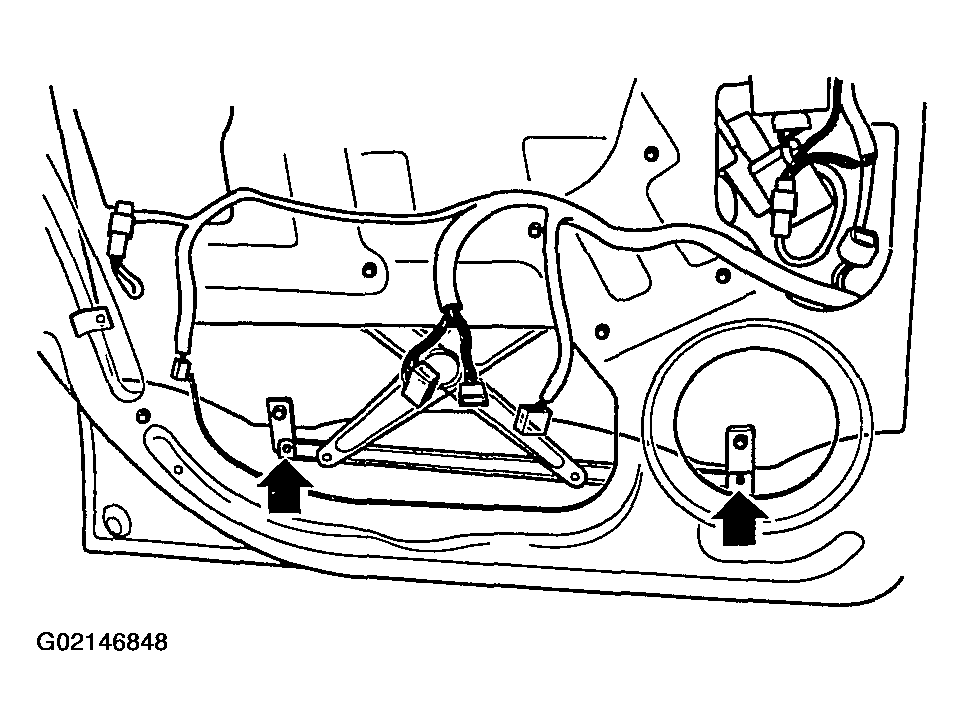

6. Remove window glass grip bolts (2).
  Tightening torque:

  8-12 N.m (0.8-1.2 kg.m, 6-9 lb. ft)

  Fig 9: Removing Window Glass Grip Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
7. Disconnect negative battery cable.

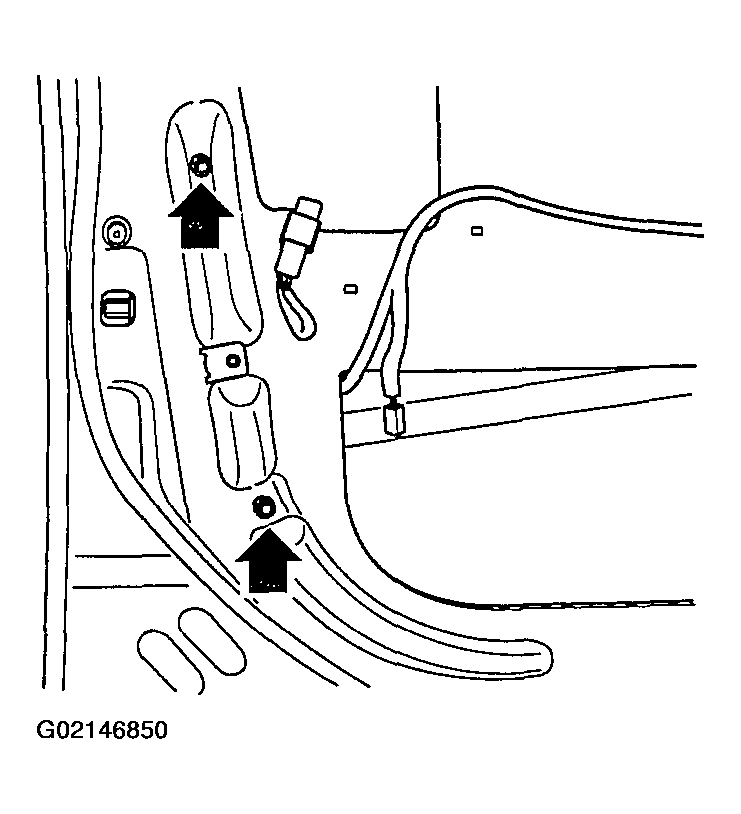

Remove window glass guide.
1. Remove window glass guide (front) bolt (1) and nut (1).
  Tightening torque:

  8-12 N.m (0.8-1.2 kg.m, 6-9 lb. ft)

  Fig 10: Removing Front Window Glass Guide (1 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.

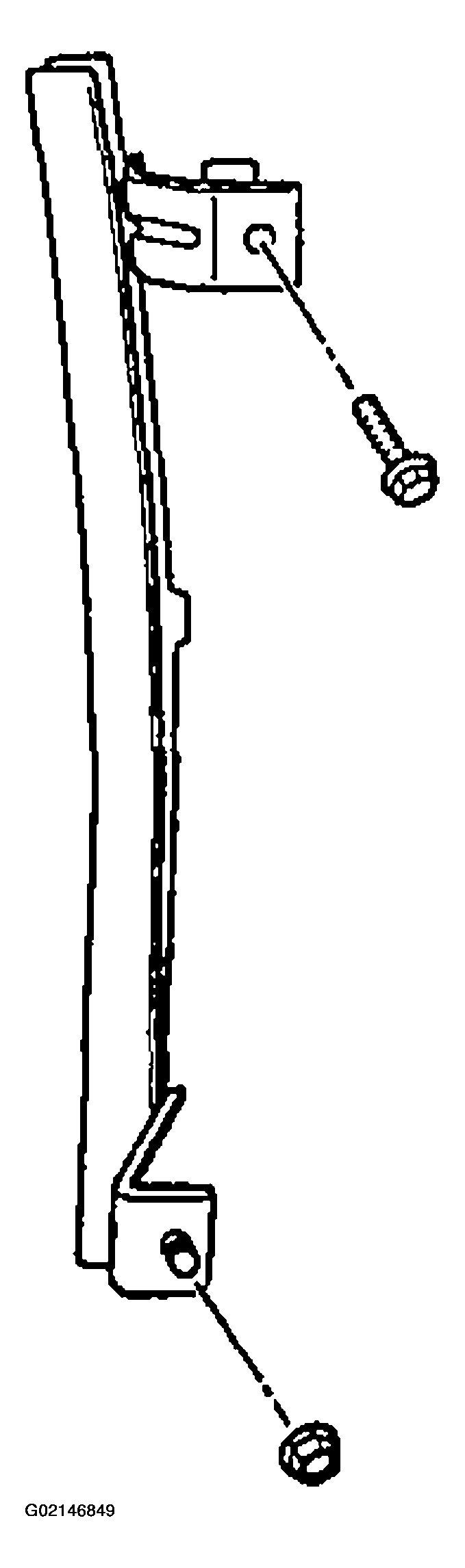

  Fig 11: Removing Front Window Glass Guide (2 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.
2. Remove window glass guide (rear) bolt (1).
Tightening torque:

8-12 N.m (0.8-1.2 kg.m, 6-9 lb. ft)

Fig 12: Removing Rear Window Glass Guide
Courtesy of KIA MOTORS AMERICA, INC.

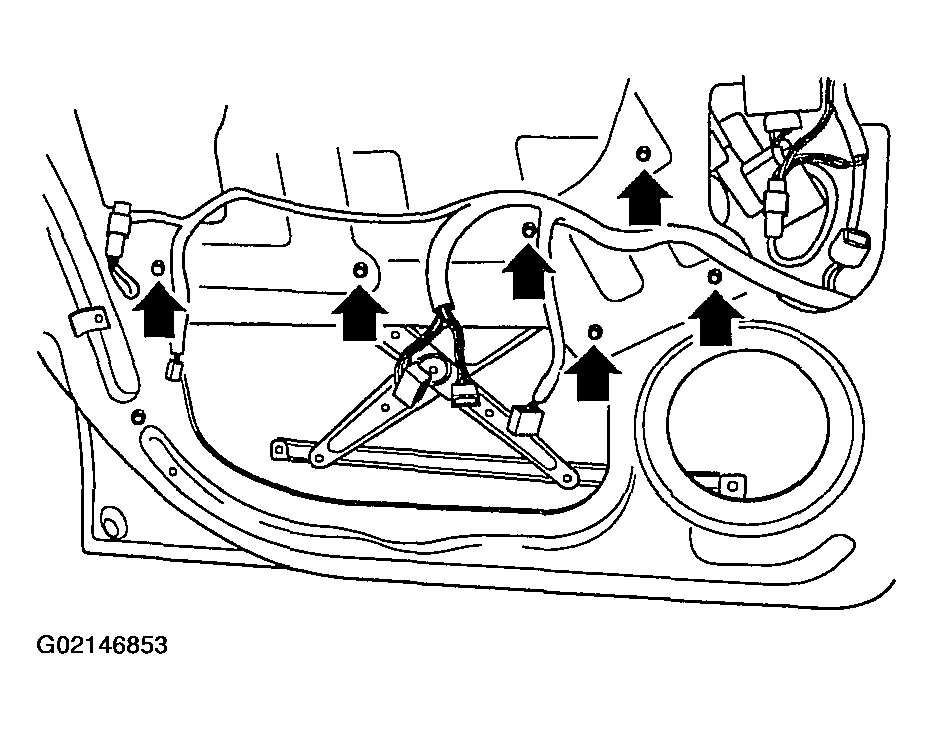

Remove power window regulator assembly.
1. Remove power window regulator nuts (6).
  Tightening torque:

  4-6 N.m (0.4-0.6 kg.m, 3-4 lb. ft)

  Fig 13: Removing Power Window Regulator Assembly (1 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.

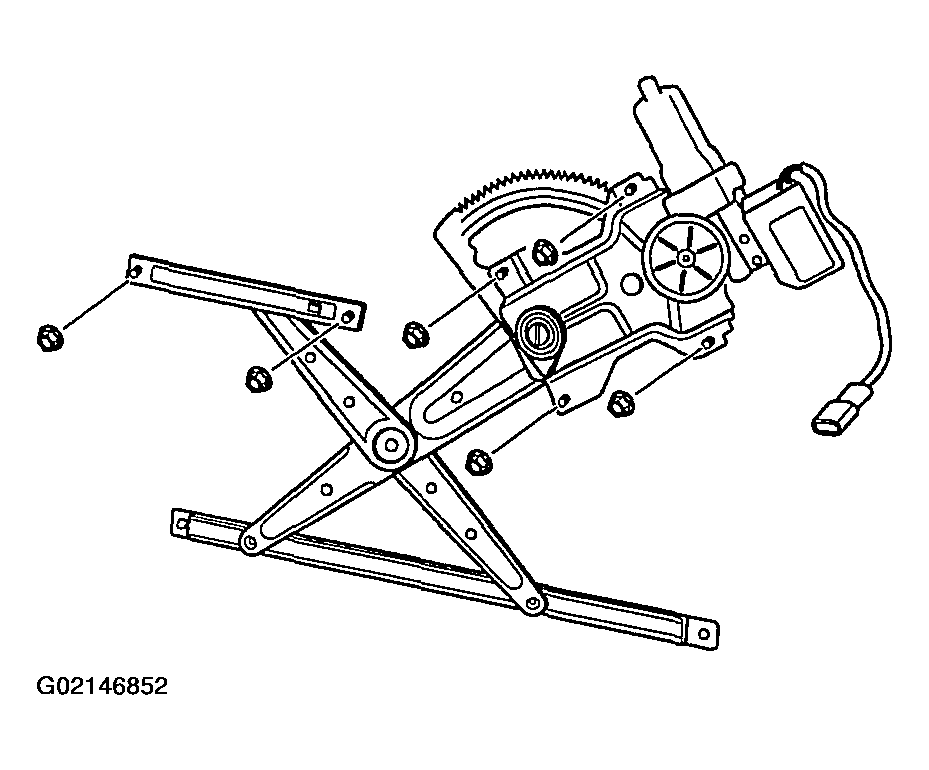

  Fig 14: Removing Power Window Regulator Assembly (2 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect electrical connector.
Install in reverse order of removal.
