Engine Block: Components

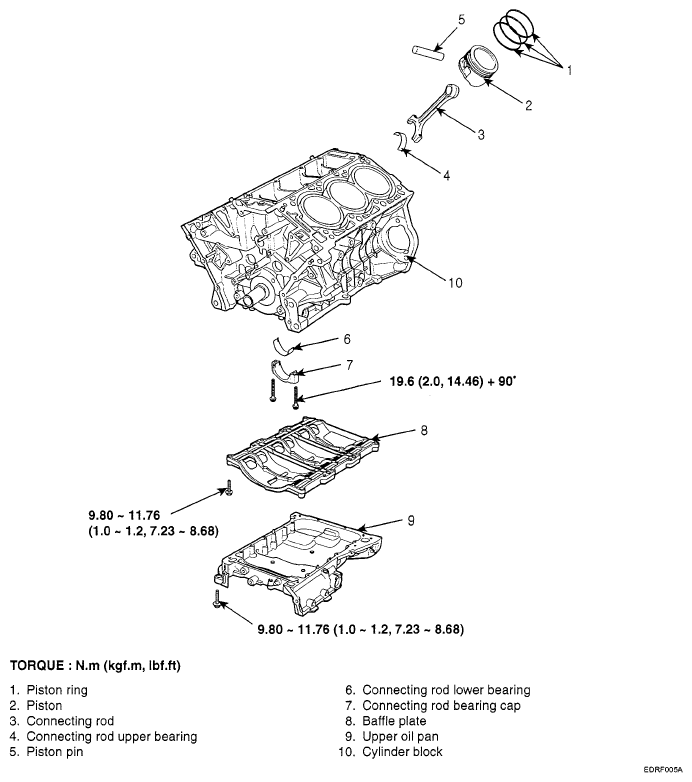

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G05118024Courtesy of KIA MOTORS AMERICA, INC.

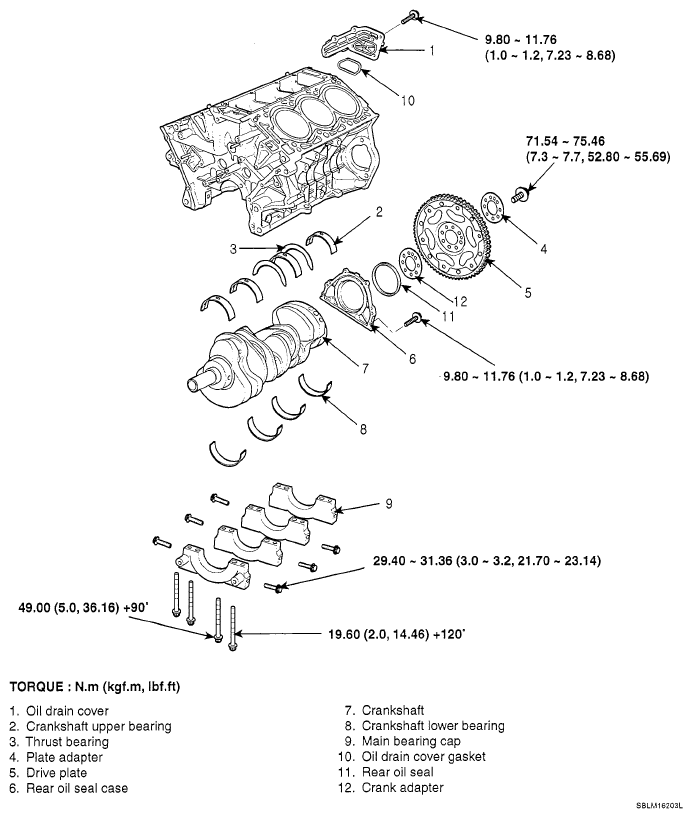

Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G05118025Courtesy of KIA MOTORS AMERICA, INC.
