Signal Circuit Inspection

Check for open in harness
1. Ignition "OFF"
2. Disconnect SMARTRA.
3. Measure resistance between terminal "5" of SMARTRA and terminal "45" of ECM
  Specification: 1 Ω or less

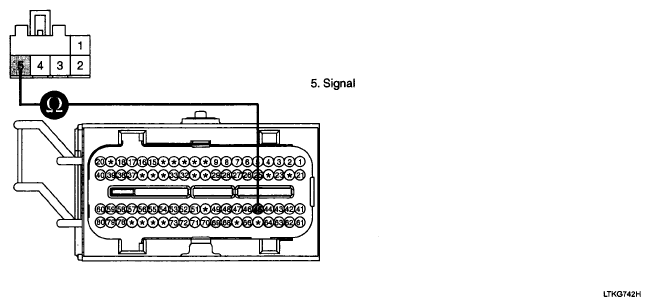

  Fig 1: Measuring Resistance Between Terminal 5 Of SMARTRA And Terminal 45 Of ECM
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES

  Go to step 2.

  NO

  Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short in harness
1. Ignition "OFF"
2. Disconnect SMARTRA.
3. Ignition "ON" & Engine "OFF"
4. Measure voltage value between terminal "5" of SMARTRA and chassis ground.
  Specification: Approx. 5.48V

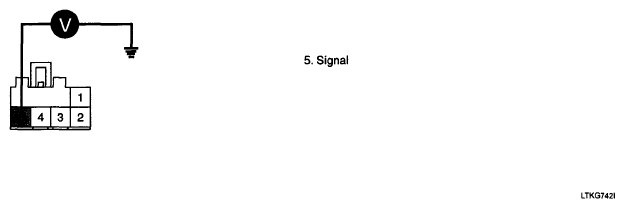

  Fig 2: Measuring Voltage Value Between Terminal 5 Of SMARTRA And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specifications?
  YES

  Go to "SIGNAL CIRCUIT INSPECTION " procedure

  NO

  Check for short in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
