Tailgate Switch Inspection

Check the power tailgate control module input/output value by using the diagnostic tool. If the operation of tailgate module is abnormal, replace power tailgate switch.
When checking tailgate switch operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.

Fig 1: Identifying Scan Tool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.
Select the "POWER TAILGATE" menu to check.

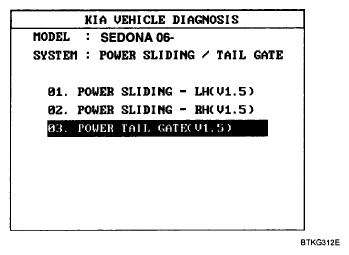

Fig 2: Identifying Scan Tool Display - Power Tailgate
Courtesy of KIA MOTORS AMERICA, INC.
Select the sensor output. And then check the power tailgate local switch output value changed by the controlling PTG.

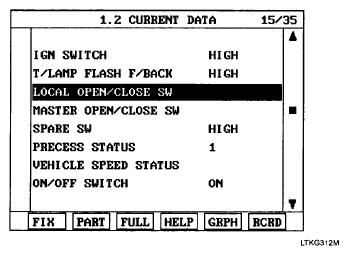

Fig 3: Identifying Scan Tool Display - Local Open/Close Switch
Courtesy of KIA MOTORS AMERICA, INC.
If there is no input/output change from OFF to ON during PTG operation, change the power tailgate switch.
