Overhead Console Door Switch Inspection

Check the overhead console door switch input/output value by using the diagnostic tool. If the operation of overhead console door switch is abnormal, check the IPM and replace.
When checking the overhead console switch operation, select a vehicle type and "IPM".

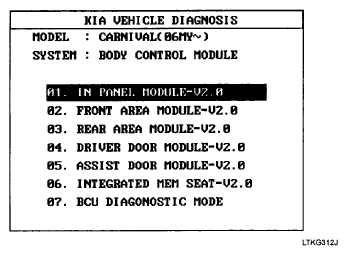

Fig 1: Identifying Scan Tool Display - IPM
Courtesy of KIA MOTORS AMERICA, INC.
Select a in panel module (IPM) and "02. CURRENT DATA".

Fig 2: Diagnosis Tool Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.
Check the PSD PTG power control switch and PTG switch output value.

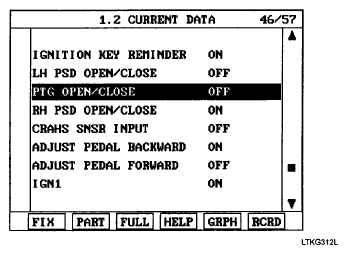

Fig 3: Identifying Scan Tool Display - PTG Open/Close
Courtesy of KIA MOTORS AMERICA, INC.
Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.
