Cooling System: Removal: Radiator

Drain the engine coolant.
Remove the radiator grille upper cover (A).

Fig 1: Locating Radiator Grille Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove under cover.
Remove the radiator support upper member assembly (A) for convenience sake.

Fig 2: Locating Radiator Support Upper Member Assembly
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The bottom side bolt (A) which can be seen after removing the under cover should be loosened for removal of the radiator support upper member assembly.

Fig 3: Identifying Bottom Side Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect radiator upper and lower hoses (A).

Fig 4: Locating Radiator Upper And Lower Hoses
Courtesy of KIA MOTORS AMERICA, INC.

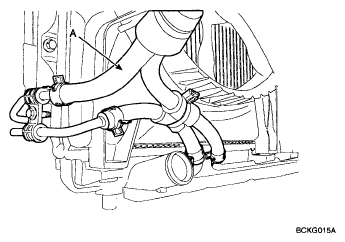

Disconnect transaxle oil cooler hoses (A). Refer to AUTOMATIC TRANSAXLE SYSTEM .

Fig 5: Locating Transaxle Oil Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.

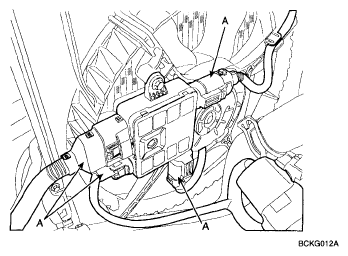

Disconnect the radiator fan connectors (A).

Fig 6: Locating Radiator Fan Connectors
Courtesy of KIA MOTORS AMERICA, INC.

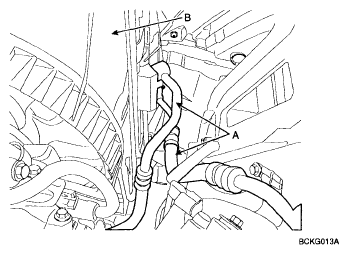

Disconnect the pressure lines (A) from the radiator assembly (B).

Fig 7: Locating Pressure Lines And Radiator Assembly
Courtesy of KIA MOTORS AMERICA, INC.

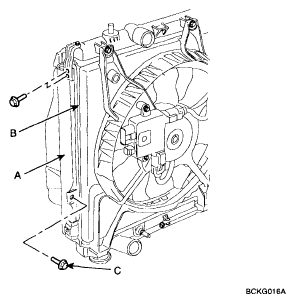

Separate the condenser (A) from the radiator assembly (B) by removing the bolts (C).

Fig 8: Locating Condenser, Radiator Assembly And Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

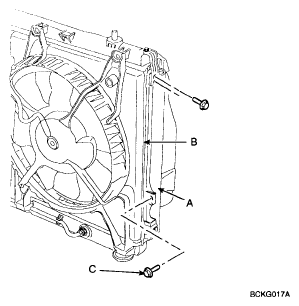

Fig 9: Locating Condenser, Radiator Assembly And Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator bracket.
Remove the radiator assembly.
Remove the radiator cooling fan (A).

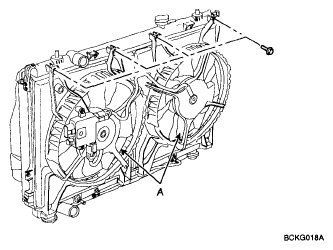

Fig 10: Locating Radiator Cooling Fan
Courtesy of KIA MOTORS AMERICA, INC.
