Front Strut Assembly: Installation

Install the strut upper mounting nuts (A).
Tightening torque N.m (kgf.m, lb-ft):

45-60 (4.5-6.0, 32.5-43.4)

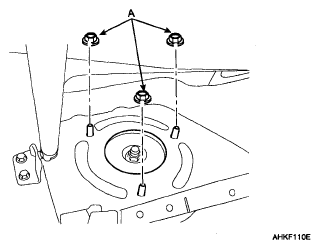

Fig 1: Identifying Strut Upper Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install the front strut assembly (A) bolts (B) to the front knuckle.
Tightening torque N.m (kgf.m, lb-ft):

100-120 (10-12, 72.3-86.8)

Fig 2: Identifying Front Strut And Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the front stabilizer link (A) nut (B) to the strut assembly.
Tightening torque N.m (kgf.m, lb-ft):

100-120 (10-12, 72.3-86.8)

Fig 3: Identifying Front Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the speed sensor (A) and wire (B) bolts.
Tightening torque N.m (kgf.m, lb-ft):

7-11 (0.7-1.1, 5.1-8.0)

Fig 4: Identifying Speed Sensor And Wire Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the brake hose bracket bolt (A, B) to the strut assembly.
Tightening torque N.m (kgf.m, lb-ft):

7-11 (0.7-1.1, 5.1-8.0)

Fig 5: Identifying Brake Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the wheel and the tire (A) to the front hub (B).
Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig 6: Identifying Wheel & Tire Assembly And Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
