Schematic Diagram

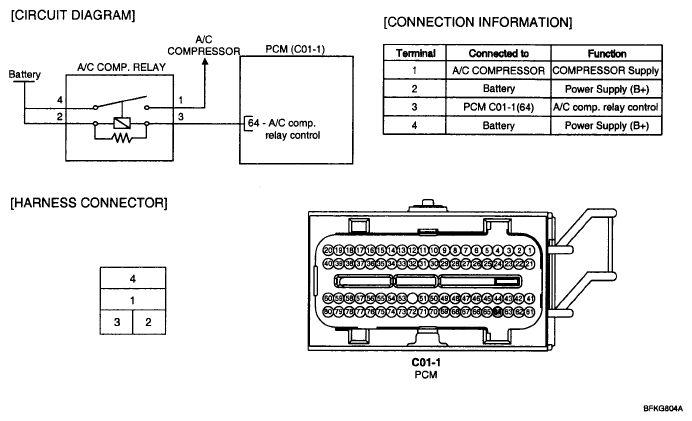

Fig 1: Schematic Diagram - A/C Clutch Relay Control Circuit Low

G04883531

Courtesy of KIA MOTORS AMERICA, INC.
