DTC Troubleshooting Procedures (2 Of 2)
>>
DTC P0480 Fan 1 Control Circuit Malfunction
>>
Schematic Diagram
Schematic Diagram

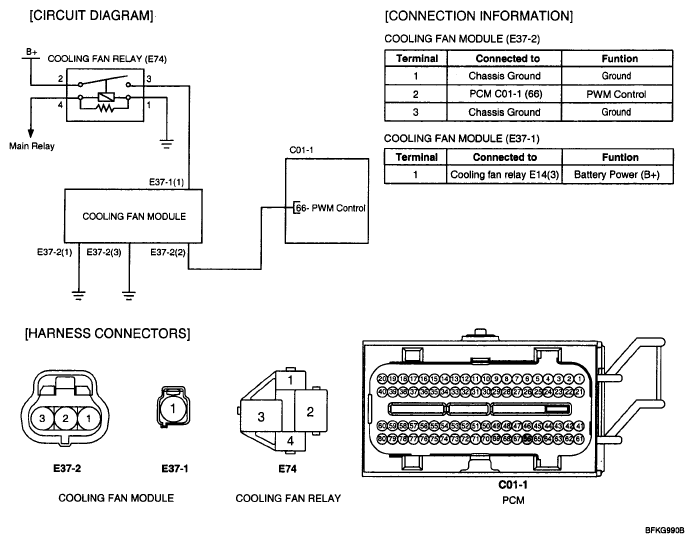

Fig 1: Schematic Diagram - Fan 1 Control Circuit Malfunction
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
