Monitor Scan Tool Data

  1. Connect scan tool to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor the "Yaw rate sensor-lateral & Yaw rate sensor-yaw" parameter on the scan tool.

    Specification: Lateral G sensor: ± 0 G, YAW rate Sensor: ± 0 deg/s

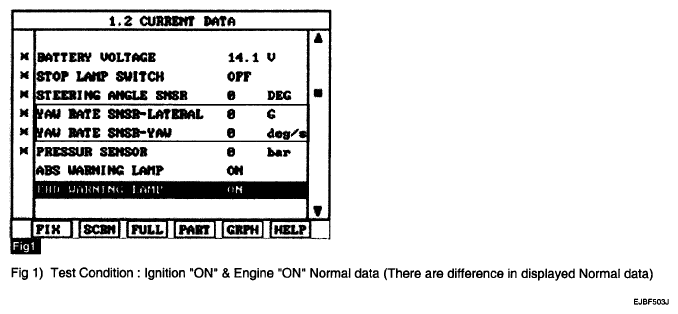

    Fig 1: Scan Tool Display - EBD Warning Lamp
    G04883876Courtesy of KIA MOTORS AMERICA, INC.
  4. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor connection in Yaw Rate & Lateral G sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
