Parking Brake: Components

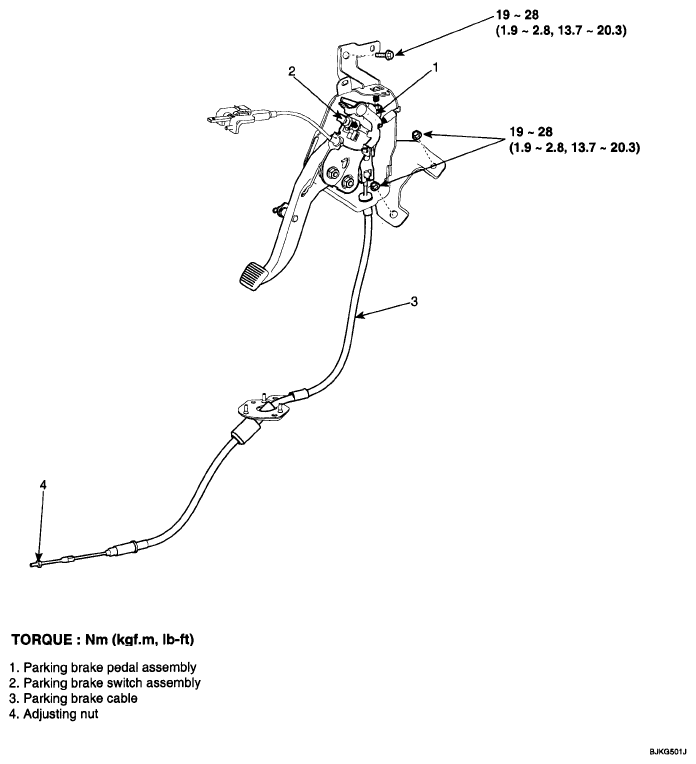

Fig 1: Parking Brake System Replacement Components With Torque Specifications
G04882852Courtesy of KIA MOTORS AMERICA, INC.

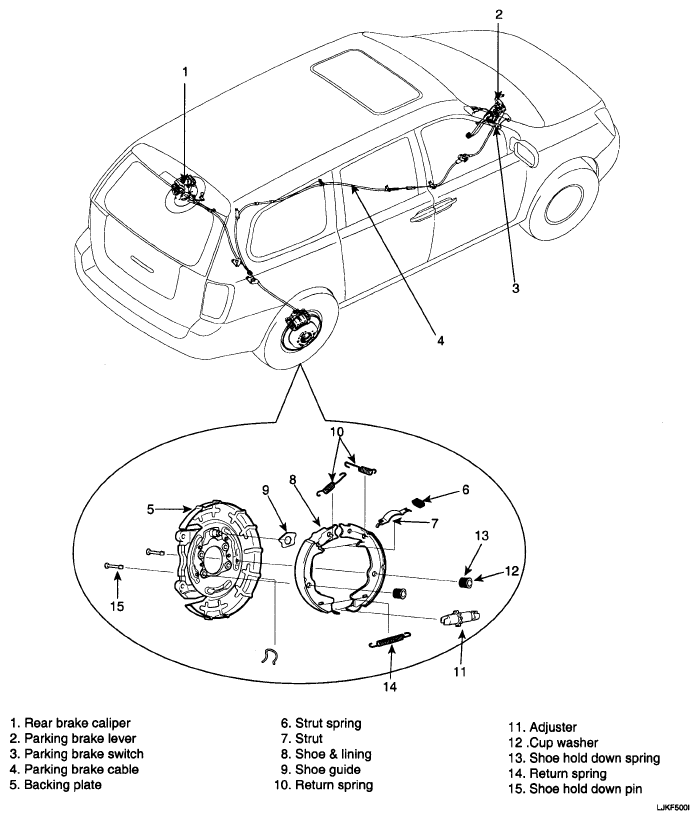

Fig 2: Identifying Parking Brake System Components
G04882853Courtesy of KIA MOTORS AMERICA, INC.
