Roof Trim Replacement
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Remove the following item.
- Sunvisor. See REPLACEMENT .
- Assist handle. See REAR HEATER CONTROL UNIT REPLACEMENT .
- Side tray. See REPLACEMENT .

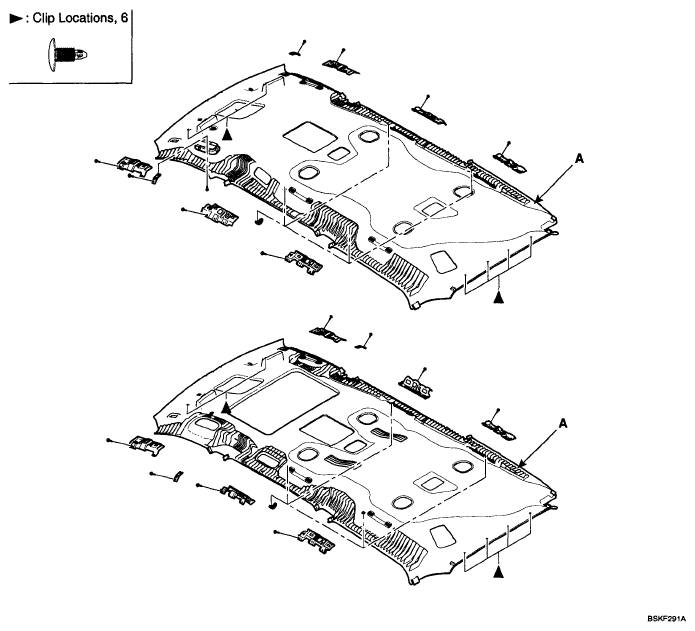

- Using a clip remover, detach the clips, and remove the roof trim (A).
- Installation is the reverse the removal.NOTE:
- Replace any damage clips.
