Cluster Fascia Panel Replacement

NOTE:
  • When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Tilt the steering column down.
  2. Remove the screws, and detach the clips.
  3. After disconnecting the connector (A), remove the cluster fascia panel (B).

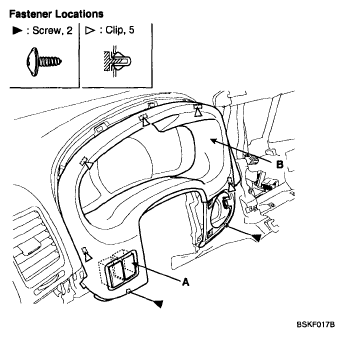

    Fig 1: Identifying Connector And Cluster Fascia Panel
    G04884074Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
