Sedona Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Immobilizer Control System
>>
Circuit Diagram
Circuit Diagram

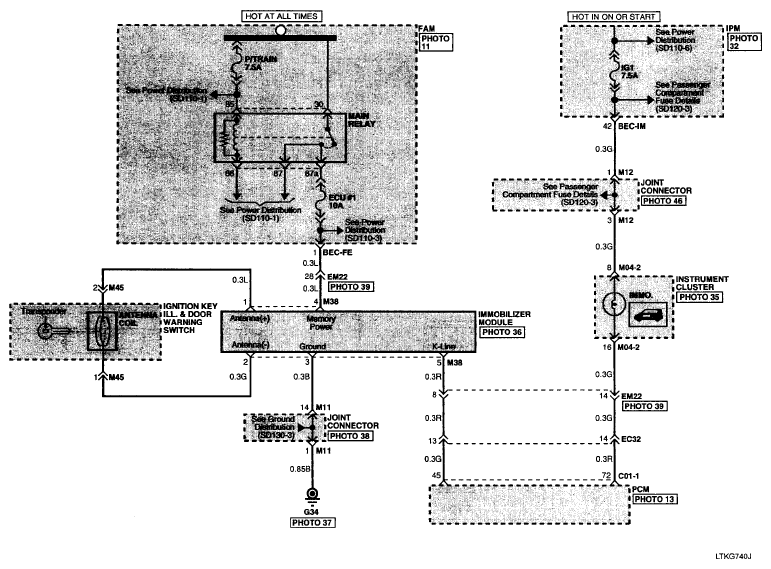

Fig 1: Immobilizer Control System - Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

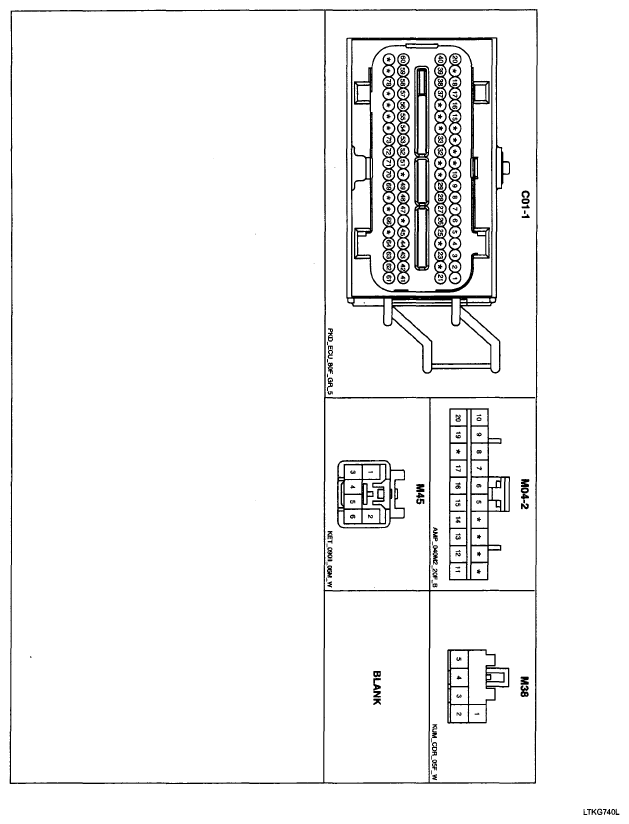

Fig 2: Immobilizer Control System - Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
