Back Warning Light: Buzzer: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel. Refer to CRASH PAD .
    Fig 1: Identifying Crash Pad Lower Panel
    G04884635Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the buzzer (A) after loosening the bolt and disconnecting the connector from the left side of IPM.

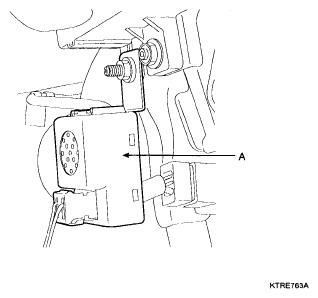

    Fig 2: Locating Buzzer
    G04885270Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal procedure.
