Kia
>>
2008
>>
Rondo LX, 2.4 3
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emissions Control System
>>
Crankcase Emission Control System
>>
Evaporative And ORVR Emission Control System
>>
Components
Evaporative And ORVR Emission Control System: Components

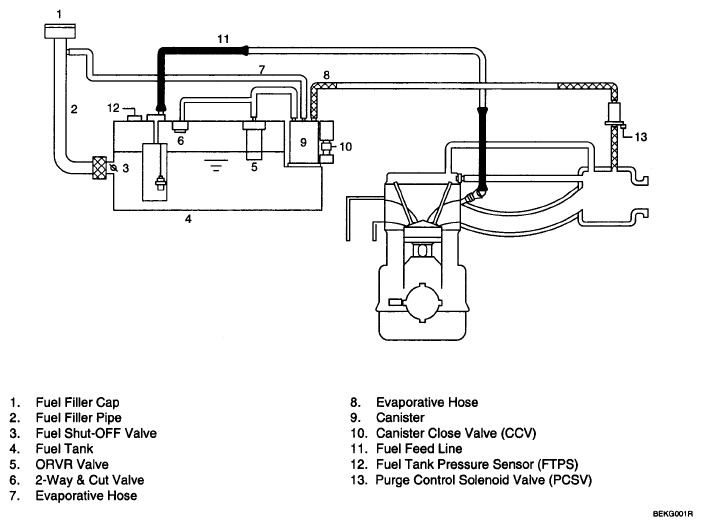

Fig 1: Identifying Evaporative And Emission Control System
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
