Fluid Leaks Inspection

Check for leaks from the transmission. If there are leaks, it is necessary to repair or replace O-ring, seal packings, oil seals, plugs or other parts.

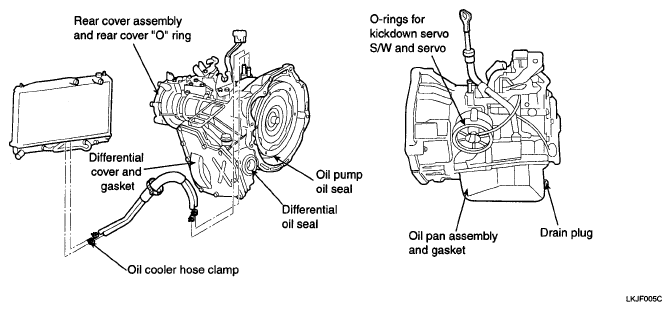

Fig 1: Identifying O-Ring, Seal Packings With Oil Seals
G04862529Courtesy of KIA MOTORS AMERICA, INC.
