Automatic Transaxle Hydraulic Circuit: Lock

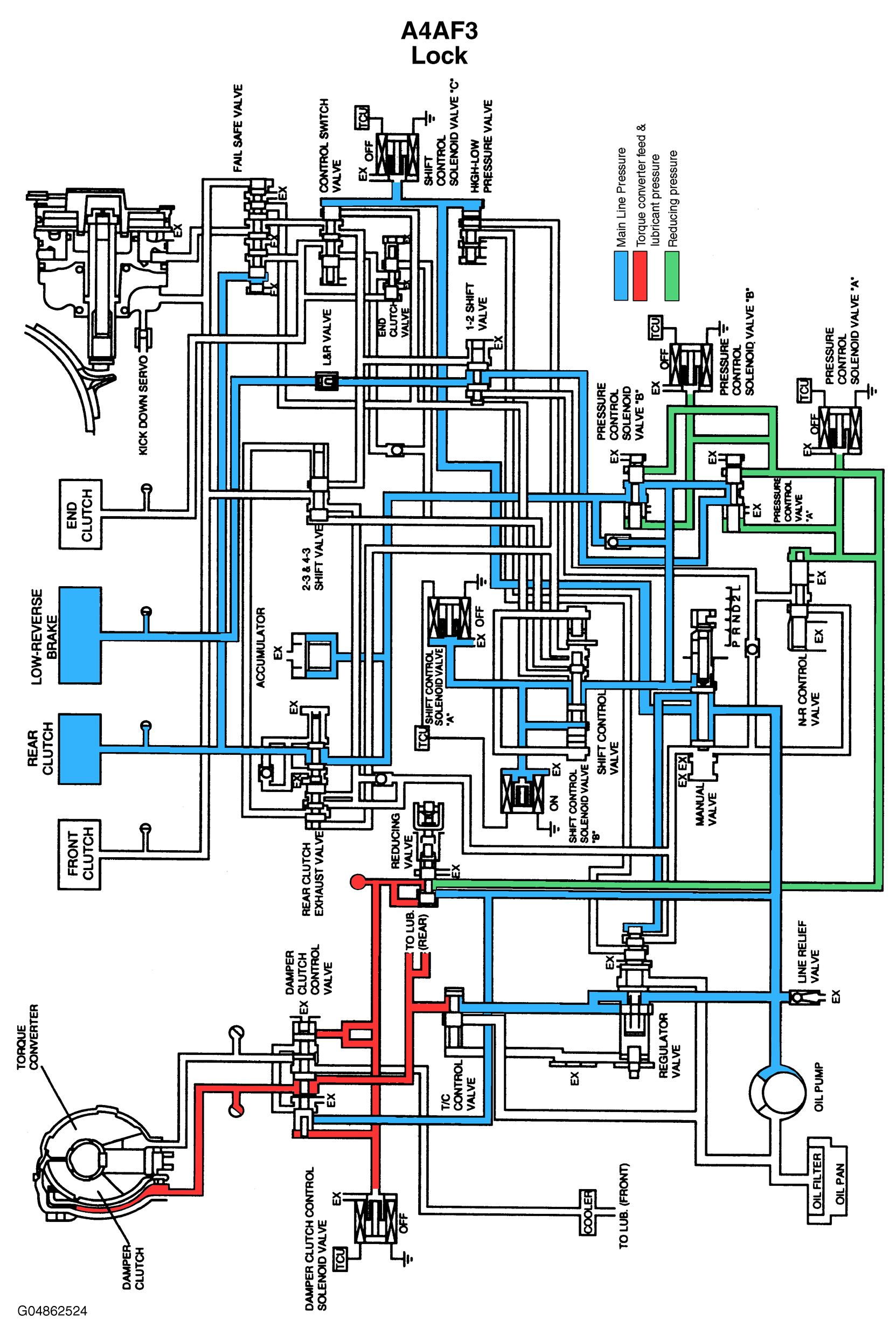

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Lock

G04862524

Courtesy of KIA MOTORS AMERICA, INC.
