Transaxle Gear Oil Level: Inspection

Inspect each component for evidence of leakage. Check the gear oil level by removing the filler plug. If the oil is contaminated, it is necessary to replace it with new oil.

1. Remove oil filler plug (A).

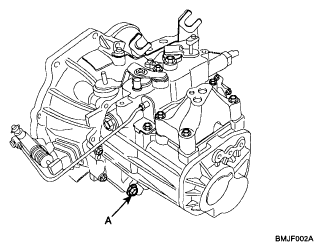

   Fig 1: Identifying Oil Filler Plug

   Courtesy of KIA MOTORS AMERICA, INC.
2. Check level with finger.

   Oil level must be up to fill the hole, add oil until it runs over.

   Fig 2: Identifying Fuel Level

   Courtesy of KIA MOTORS AMERICA, INC.
3. Install filler plug.

   Filler plug tightening torque:

   60-80 N.m (600-800 kgf.cm, 43-58 lb.ft)
