Components (2)

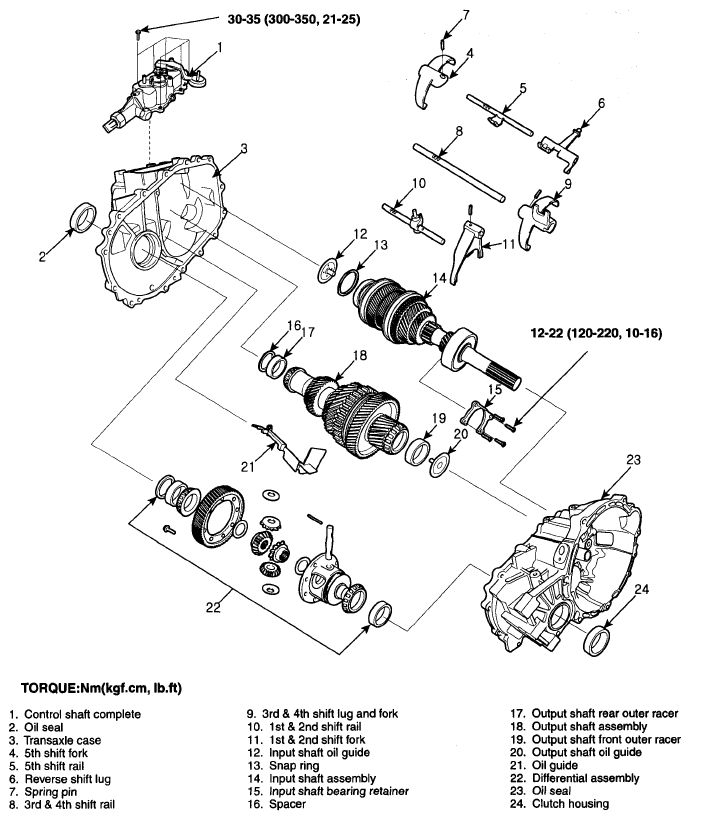

Fig 1: Manual Transaxle Replacement Components With Torque Specifications

G04862444

Courtesy of KIA MOTORS AMERICA, INC.
