Components (1)
Components (1)

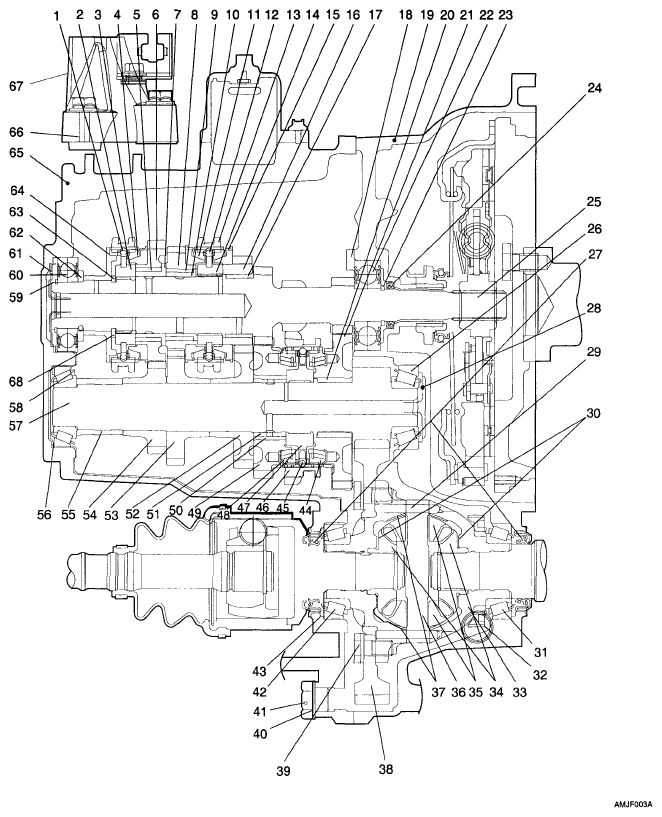

Fig 1: Identifying Manual Transaxle Components
Courtesy of KIA MOTORS AMERICA, INC.

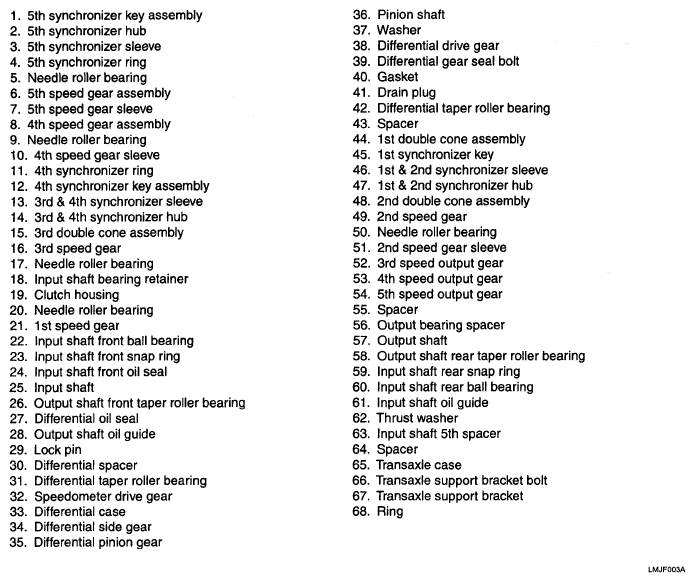

Fig 2: Manual Transaxle Components Reference
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
