Roof Trim

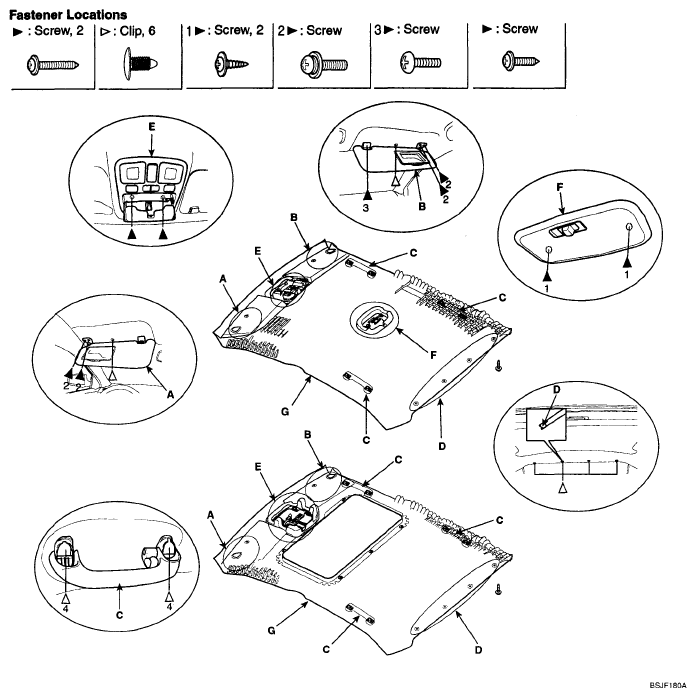

- Remove the following items.
- Sunvisor (A), (B).
- Over head console (E).
- Room lamp (F).
- Assist handle (C).
- Remove the roof trim.
NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.
- Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
