Lower Crash Pad Panel Replacement

  1. Remove the fuse box cover (A).
    Fig 1: Identifying Fuse Box Cover
    G04863397
  2. Loosening the crash pad lower panel mounting screw. Remove the lower crash pad panel (A).

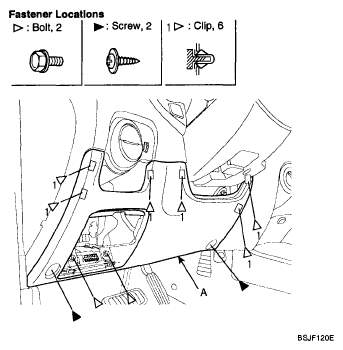

    Fig 2: Identifying Lower Crash Pad Panel And Mounting Screw
    G04863398
  3. Installation is the reverse of removal.
