Center Fascia Panel Replacement

  1. After disconnecting the connector (A), remove the center fascia panel (B).
    NOTE:
    • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
    • Put on gloves to protect your hands.

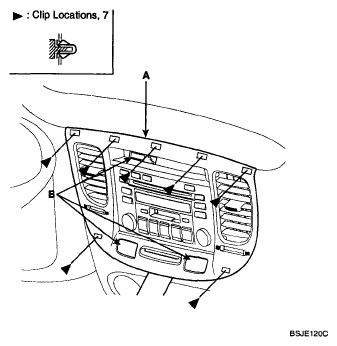

      Fig 1: Identifying Center Fascia Panel And Connector
      G04863396
  2. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
