Front Bumper: Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not bend or scratch the cover and other parts.

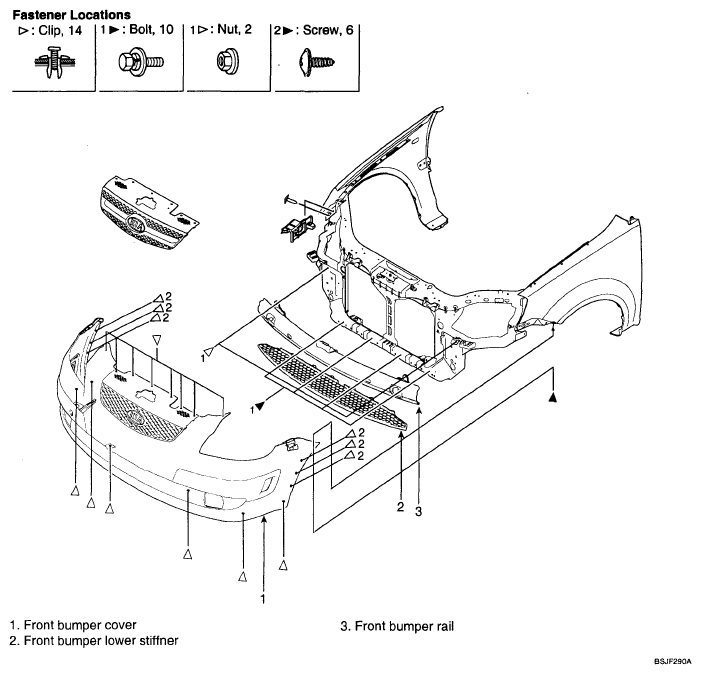

Fig 1: Identifying Front Bumper Components, Nuts, Bolts & Screws
G04863426Courtesy of KIA MOTORS AMERICA, INC.
