Speed Operation Check

WARNING: This page is about a different car, the 2008 Kia Optima and 2008 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the connector from the wiper motor.
  2. Attach the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5.
  3. Check that the motor operates at low speed.
  4. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5.
  5. Check that the motor operates at high speed.

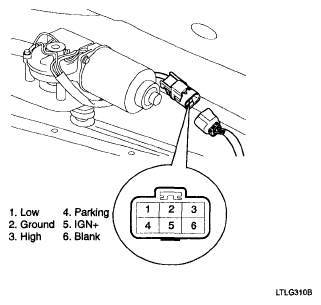

    Fig 1: Identifying Wiper Motor Connector Terminals
    G04806543Courtesy of KIA MOTORS AMERICA, INC.
