Front Bumper: Replacement

WARNING: This page is about a different car, the 2008 Kia Optima and 2008 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
Take care not bend or scratch the cover and other parts.

Remove the upper cover (A).
Loosen the front bumper cover mounting screws and clips.
Remove the front bumper cover and rail.
Disconnect the fog lamp connector (B).
Installation is the reverse of removal.

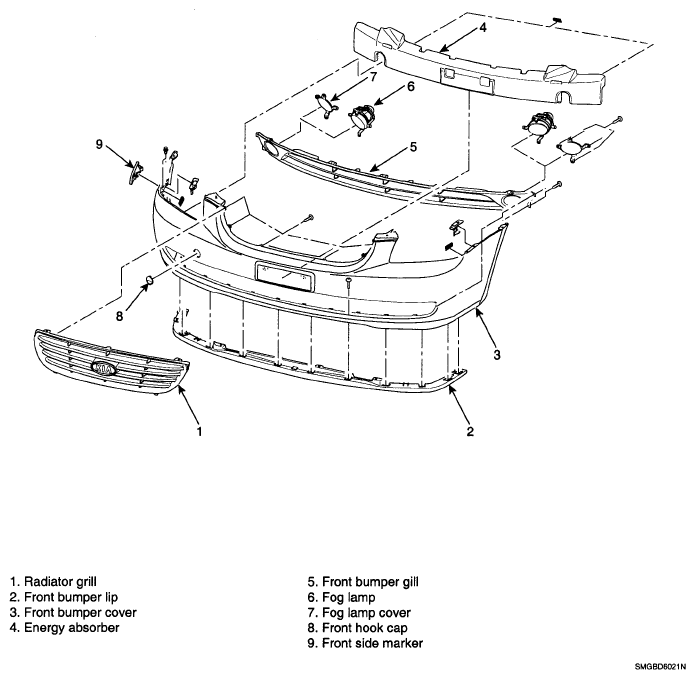

Fig 1: Exploded View Of Front Bumper Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

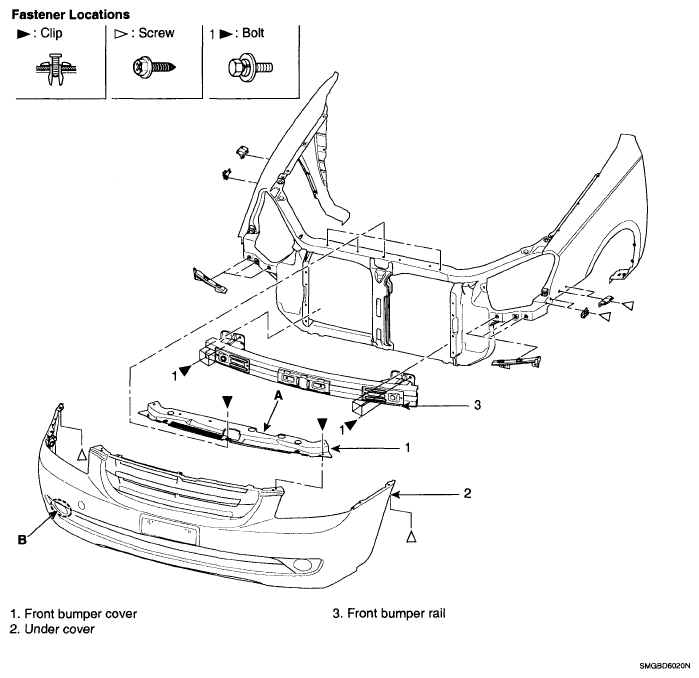

Fig 2: Exploded View Of Front Bumper Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
