Seizing Of Front Brake Disc

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake disc from hub using an M8 screw (A) if the brake disc has been seized with the hub due to corrosion or overheating.
    NOTE: Be careful not to use a hammer. The disc can be damaged if you remove the disc from the hub by hammering.

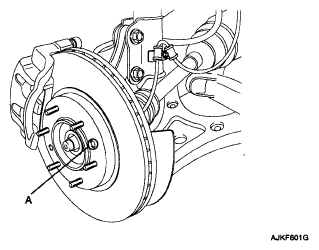

    Fig 1: Identifying Screw M8
    G04882830Courtesy of KIA MOTORS AMERICA, INC.
