Power Steering Gear Box: Inspection

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Rack
1. Check for rack tooth face damage or wear.
2. Check for oil seal contact surface damage.
3. Check for rack bending or twisting.
4. Check for oil seal ring damage or wear.
5. Check for oil seal damage or wear.

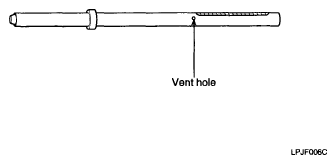

Fig 1: Identifying Vent Hole In Rack
Courtesy of KIA MOTORS AMERICA, INC.
Pinion valve
1. Check for pinion gear tooth face damage or wear.
2. Check for oil seal contact surface damage.
3. Check for seal ring damage or wear.
4. Check for oil seal damage or wear.

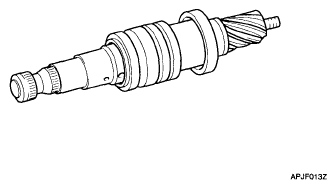

Fig 2: Identifying Pinion Gear
Courtesy of KIA MOTORS AMERICA, INC.
Bearing
1. Check for seizure or abnormal noise during a bearing rotation.
2. Check for excessive play.
3. Check for missing needle bearing rollers.
Others
1. Check for damage of the rack housing cylinder bore.
2. Check for boot damage, cracking or aging.
