Front Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the connecting bolt (A) between the steering universal joint assembly (B) and the pinion assembly.
    Fig 1: Identifying Bolt Between Steering Universal Joint Assembly
    G04882501Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen the wheel nuts slightly. Raise the front of the vehicle, and make sure it is securely supported.
  3. Remove the front wheel and tire (A) from front hub (B).
    Fig 2: Identifying Front Wheel And Tire From Front Hub
    G04882502Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Be careful not to damage the hub bolts (C) when removing the front wheel and tire (A).
  4. Remove the front stabilizer link (A) nut (B) from the strut assembly.
    Fig 3: Identifying Front Stabilizer Link And Nut
    G04805342Courtesy of KIA MOTORS AMERICA, INC.
  5. After removing both sides of the tie rod end (A) self-locking nuts (B) and cotter pin (C), remove the ball joint by using the special tool (09568-4A000).
    Fig 4: Identifying Tie Rod End, Self-Locking Nut And Cotter Pin
    G04882504Courtesy of KIA MOTORS AMERICA, INC.
    Fig 5: Identifying Tie Rod End And Knuckle SST (09568-4A000)
    G04882391Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove both sides of the lower arm (A) mounting bolts (B).
    Fig 6: Identifying Front Lower Arm And Mounting Bolt
    G04882491Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the engine mounting bolts (A, B)
    Fig 7: Identifying Engine Mounting Bolts (1 Of 2)
    G04882507Courtesy of KIA MOTORS AMERICA, INC.
    Fig 8: Identifying Engine Mounting Bolts (2 Of 2)
    G04882508Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the twelve bolts and nuts of the sub frame by supporting it with a jack.

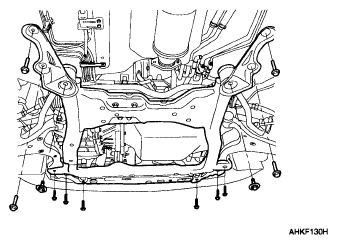

    Fig 9: Identifying Twelve Bolts And Nuts
    G04882509Courtesy of KIA MOTORS AMERICA, INC.
  9. After lowering the jack which supports the sub frame in a proper level, remove both sides of the stabilizer bar assembly mounting bolts (A).
    Fig 10: Identifying Stabilizer Bar Assembly And Mounting Bolts
    G04882510Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the stabilizer bar assembly through the gap between the body and the rear side of the sub frame.
    CAUTION: Be careful not to damage to the power steering related tubes.
  11. Remove the brackets (A) and the bushings (B).
    Fig 11: Identifying Bracket And Bushing
    G04882511Courtesy of KIA MOTORS AMERICA, INC.
