Refrigeration Cycle

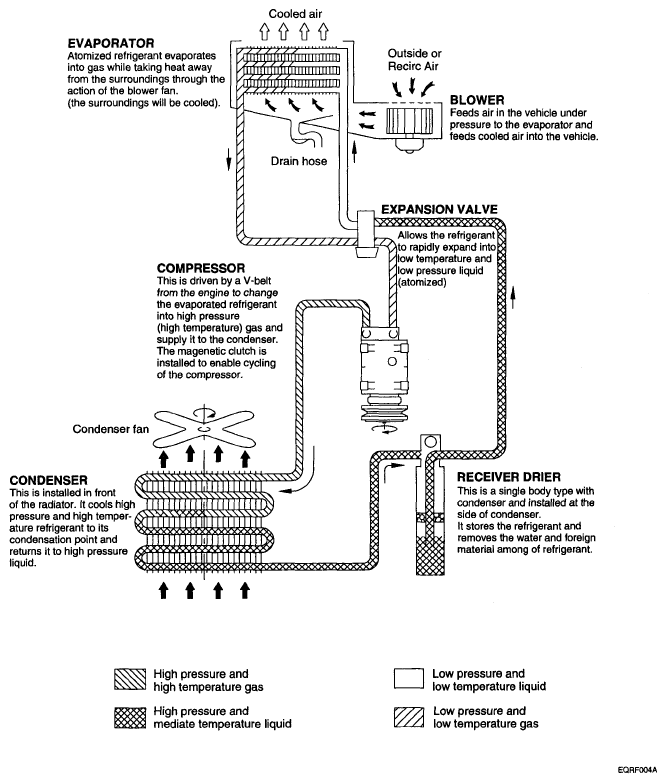

Fig 1: Refrigeration Cycle Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
