Home >> Kia >> 2008 >> Magentis 2.7 4 >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle >> Front Hub/Knuckle >> Components

Front Hub/Knuckle: Components

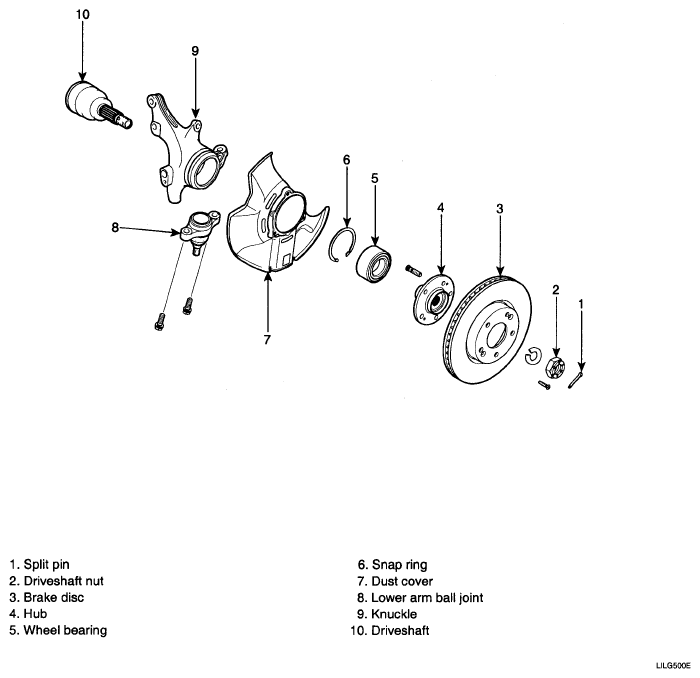

Fig 1: Identifying Front Hub/Knuckle Components

G04805293

Courtesy of KIA MOTORS AMERICA, INC.
