Section 21 (Windshield Wiper/Washer): Troubleshooting

WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

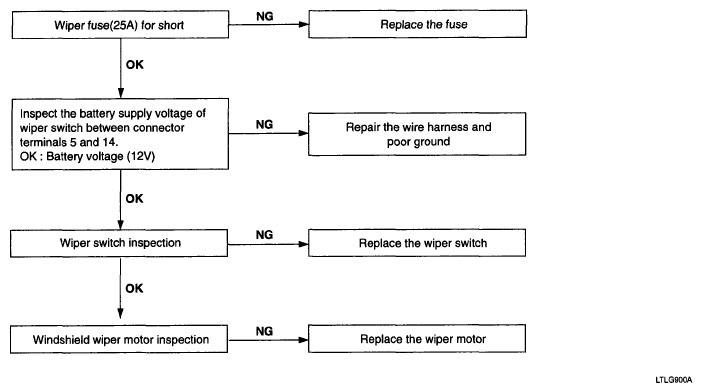

Wiper low and wiper high do not work.

Fig 1: Troubleshooting Flow Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

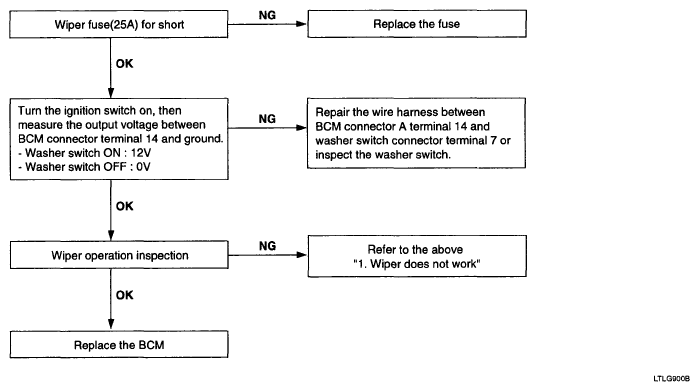

When washer switch is on, wiper does not work.

Fig 2: Troubleshooting Flow Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
