Front Wiper Motor: Installation

WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiper arm and blade to the specified position.

WIPER ARM AND BLADE DISTANCE SPECIFICATIONS

Specified position	A	B
Distance [in (mm)]	1.26+0.2/0 (34+5/0)	1.26+0.2/0 (34+5/0)

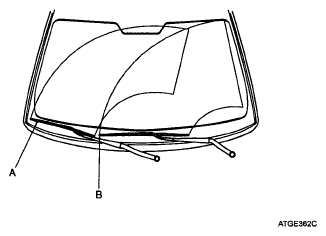

Fig 1: Identifying Wiper Arm And Blade To Specified Position

Courtesy of KIA MOTORS AMERICA, INC.

Set the washer nozzle on the specified spray position.

WIPER NOZZLE DISTANCE SPECIFICATIONS

Specified position	Distance [in (mm)]
A	14.6 (370)
B	21.2 (540)
C	3.9 (100)
D	17.5 (445)
E	9.4 (240)
F	3.5 (90)
G	10.4 (265)
H	12.6 (320)
I	2.7 (70)
J	15.9 (405)
K	10.0 (255)
L	19.9 (505)

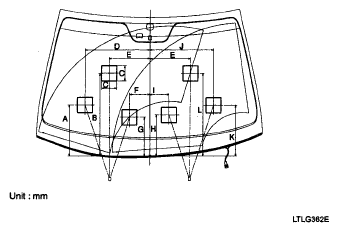

Fig 2: Identifying Washer Nozzle On Specified Spray Position

Courtesy of KIA MOTORS AMERICA, INC.
