Front Washer Motor: Replacement

WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the wire harness on the front washer reservoir.

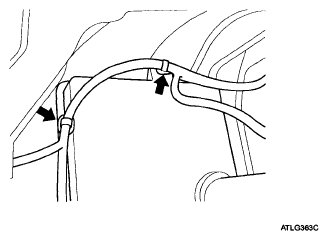

    Fig 1: Locating Wire Harness Clips
    G04806547Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the tires.
  4. Remove the wheel guide.
  5. Remove the washer hose and the washer motor connector.
  6. Remove the washer reservoir (A) after removing 3 bolts.

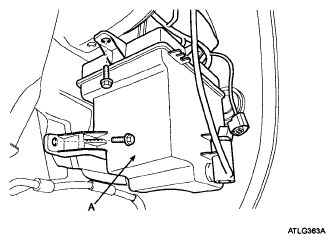

    Fig 2: Identifying Washer Reservoir Bolts
    G04806548Courtesy of KIA MOTORS AMERICA, INC.
  7. Installation is the reverse of removal.
