Monitor SCANTOOL Data

WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

Connect scantool to data link connector (DLC).
Engine "ON".
Monitor the "2nd SOL. VALVE" parameter on the scantool.
Shift gear at each position.

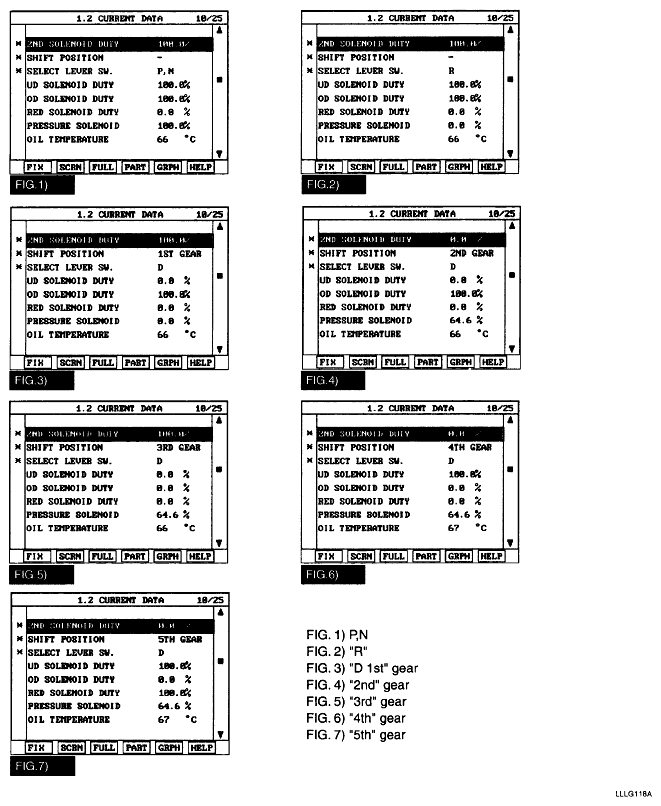

Fig 1: Display Screen Of - 2nd Solenoid Duty
Courtesy of KIA MOTORS AMERICA, INC.
Is "2nd SOLENOID DUTY" follow the reference data?
YES : --> Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO : --> Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
