Power Supply Circuit Inspection
WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect "TRANSAXLE RANGE SWITCH" connector.
- Ignition "ON" & Engine "OFF".

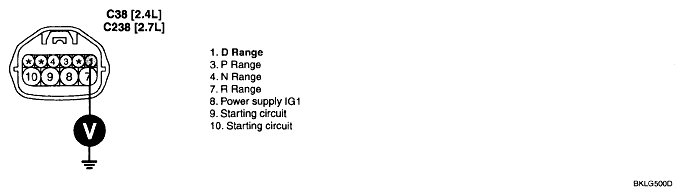

- Measure voltage between each terminal of the sensor harness connector and chassis ground.
Specification: Approx. 0V
- Is voltage within specifications?
YES : --> Go to "SIGNAL CIRCUIT INSPECTION " procedure.
no : --> Check for Short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
