Crash Pad Replacement
NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.
- Remove the following items.

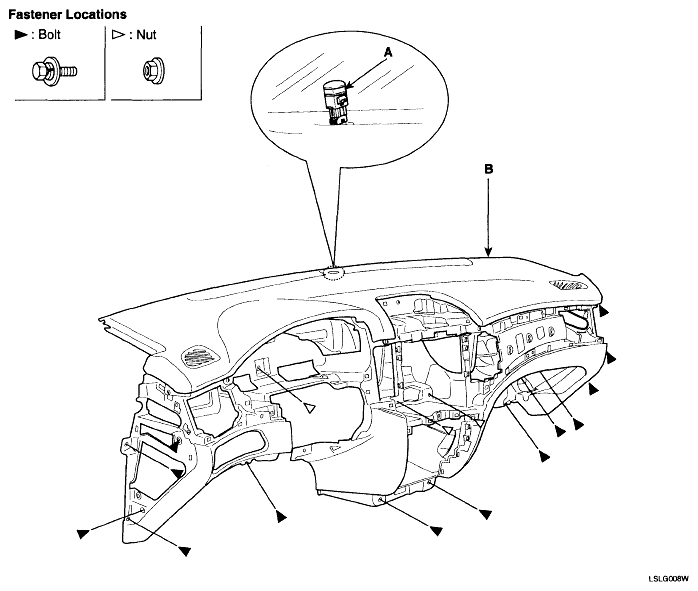

- Remove the photo sensor (A).
- Disconnect the passenger's air bag connector.
Loosen the bolts and nuts, then remove the crash pad (B).
- Installation is the reverse of removal.NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly,
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
