Center Fascia Lower Panel Replacement

  1. Remove the CENTER FASCIA PANEL  .
  2. After loosening the screw, then remove the lower panel (A).

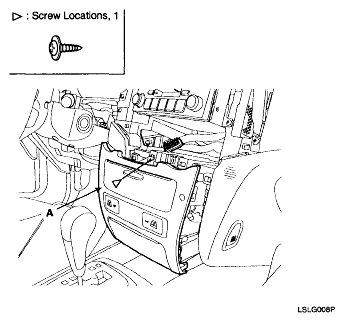

    Fig 1: Identifying Center Fascia Lower Panel
    G04806101Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
