Schematic Diagram

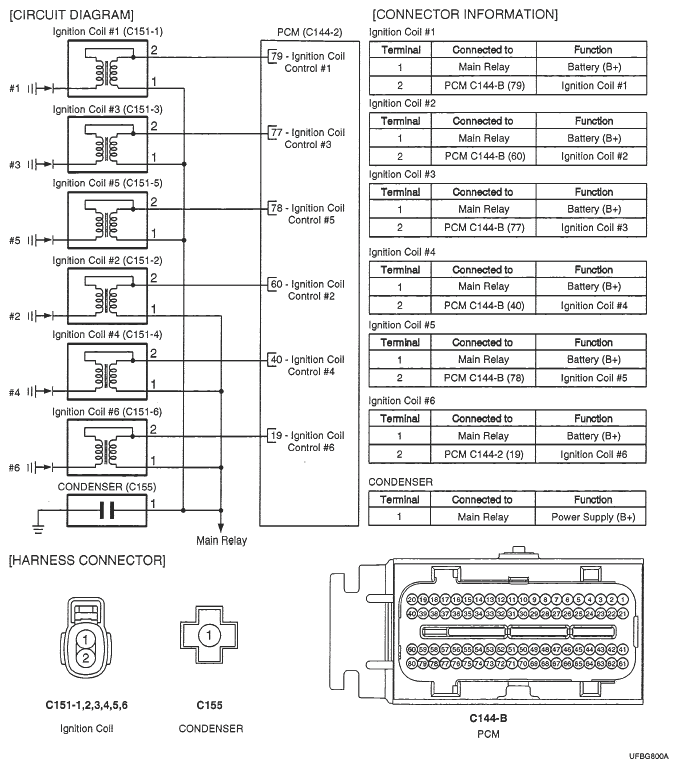

Fig 1: Spark Timing Error - Schematic Diagram

G05301597

Courtesy of KIA MOTORS AMERICA, INC.
