Fuse Index Information: Notes

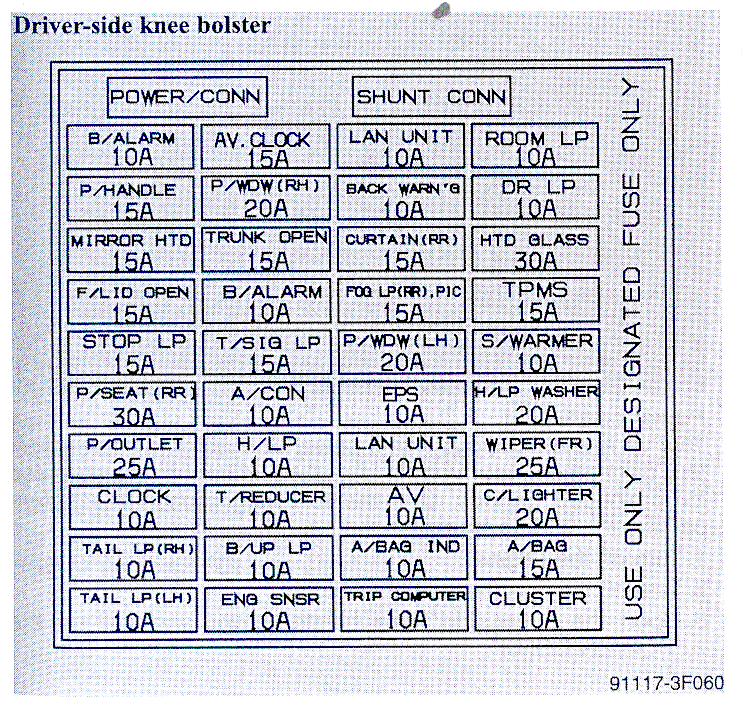

For fuse locations within the passenger compartment fuse/relay box, refer to Figure.
IDENTIFYING FUSES (PASSENGER COMPARTMENT FUSE BOX)
| Description | Fuse Rating | Protected Components |
|---|---|---|
| B/ALARM | 10A | Burglar alarm |
| A/BAG | 15A | Airbag |
| C/LIGHTER | 20A | Cigarette lighter |
| S/WARMER | 10A | Seat warmer |
| P/WDW(RH) | 20A | Power window (right) |
| P/HANDLE | 15A | Power steering wheel |
| T/SIG LP | 15A | Turn signal light |
| HTD GLASS | 30A | Defroster |
| TRUNK OPEN | 15A | Trunk lid opener |
| CLUSTER | 10A | Cluster |
| A/BAG IND | 10A | Airbag indicator |
| P/OUTLET | 25A | Electrical power socket |
| LAN UNIT | 10A | LAN unit |
| CURTAIN(RR) | 10A | Electric curtain (rear) |
| FOG LP(RR), PIC | 15A | Fog light (rear), Personal identification card |
| F/LID OPEN | 15A | Fuel filler lid opener |
| P/SEAT(RR) | 30A | Power seat (rear) |
| B/ALARM | 10A | Burglar alarm |
| STOP LP | 15A | Stop light |
| TRIP COMPUTER | 10A | Trip computer |
| B/UP LP | 10A | Back-up light |
| AV | 10A | Audio |
| H/LP | 10A | Headlight |
| A/CON | 10A | Air-conditioning system |
| P/WDW(LH) | 20A | Power window (left) |
| TAIL LP(RH) | 10A | Tail light (right) |
| BACK WARN'G | 10A | Backup warning |
| DR LP | 10A | Door courtesy lamp |
| MIRROR HTD | 15A | Outside review mirror defroster |
| ENG SNSR | 10A | Power train control system sensors |
| T/REDUCER | 10A | Seat belt tension reducer |
| CLOCK | 10A | Clock |
| WIPER(FR) | 25A | Wiper (front) |
| EPS | 10A | Electronic power steering |
| TAIL LP(LH) | 10A | Tail light (left) |
| ROOM LP | 10A | Room lamp |
| AV, CLOCK | 15A | Audio, Clock |
| LAN UNIT | 10A | LAN unit |
| TPMS | 15A | Tire pressure monitoring system |
| H/LP WASHER | 20A | Headlight washer |
| STUNT CONN | - | Switch illumination |
| POWER/CONN | - | Power connector |
