Trunk Lid Latch Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the trunk lid latch mounting bolts.
  2. Disconnect the trunk lid latch rod (A).

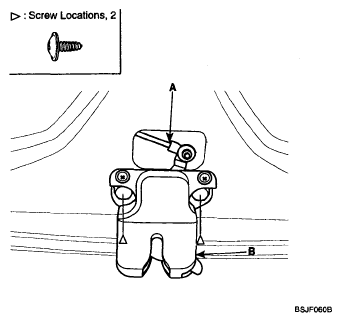

    Fig 1: Identifying Trunk Lid Latch Rod
    G04863318Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the trunk lid latch (B).
  4. Installation is the reverse of removal.
