Inside Handle Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim (See REPLACEMENT  ).
  2. Loose the inside handle (A) mounting screw. Push the inside handle rearward to disconnect from the door module.

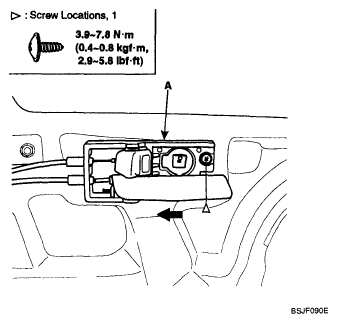

    Fig 1: Inside Handle With Torque Specifications
    G04863335Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the lock cable (A) and inside connect cable (B).

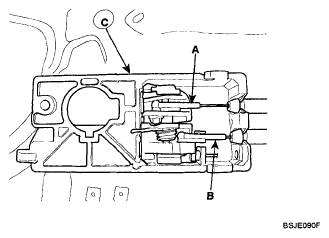

    Fig 2: Identifying Lock Cable And Inside Connect Cable
    G04863336Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the door lock and open properly.
