Signal Waveform And Data

SIGNAL WAVEFORM AND DATA

Test Condition		Scan Tool Parameter
Test Condition		O2 SNSR VOL.-B1/S1	O2 SNSR VOL.-B1/S2
Normal Value when circuit is normal	Idle after warm up	Signal is switching from rich (above 0.45V) to lean (below 0.45V) a minimum of 3 times in 10 seconds.	above 0.7V
HO2S (B1S1) signal circuit open		Approx. 0.43~0.45V	-
HO2S (B1S2) signal circuit open		-	Approx. 0.43~0.45V

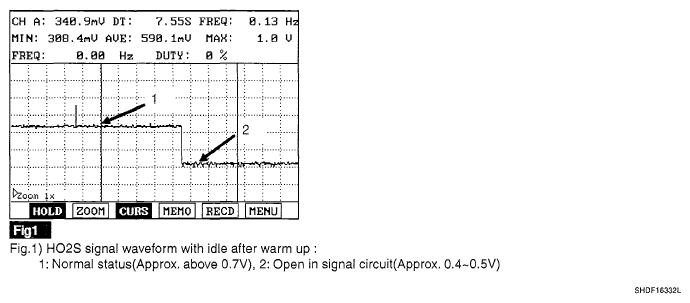

Fig 1: Signal Waveform And Data

Courtesy of KIA MOTORS AMERICA, INC.
