Engine Compartment Fuse/Relay Box: Notes

NOTE: Engine compartment fuse/relay box on models with 1.8L engine is located on driver's side of engine compartment, behind air cleaner. See Fig 1. Engine compartment fuse/relay box on models with 2.0L engine is located on driver's side of engine compartment, in front of shock tower. See Fig 2.

CAUTION: After checking the fuse box in the engine compartment, securely install the fuse box cover. Electrical failures may occur if water is allowed to leak into the fuse box.

Fig 1: Locating Engine Compartment Fuse/Relay Box (1.8L Engine)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Locating Engine Compartment Fuse/Relay Box (2.0L Engine)

Courtesy of KIA MOTORS AMERICA, INC.

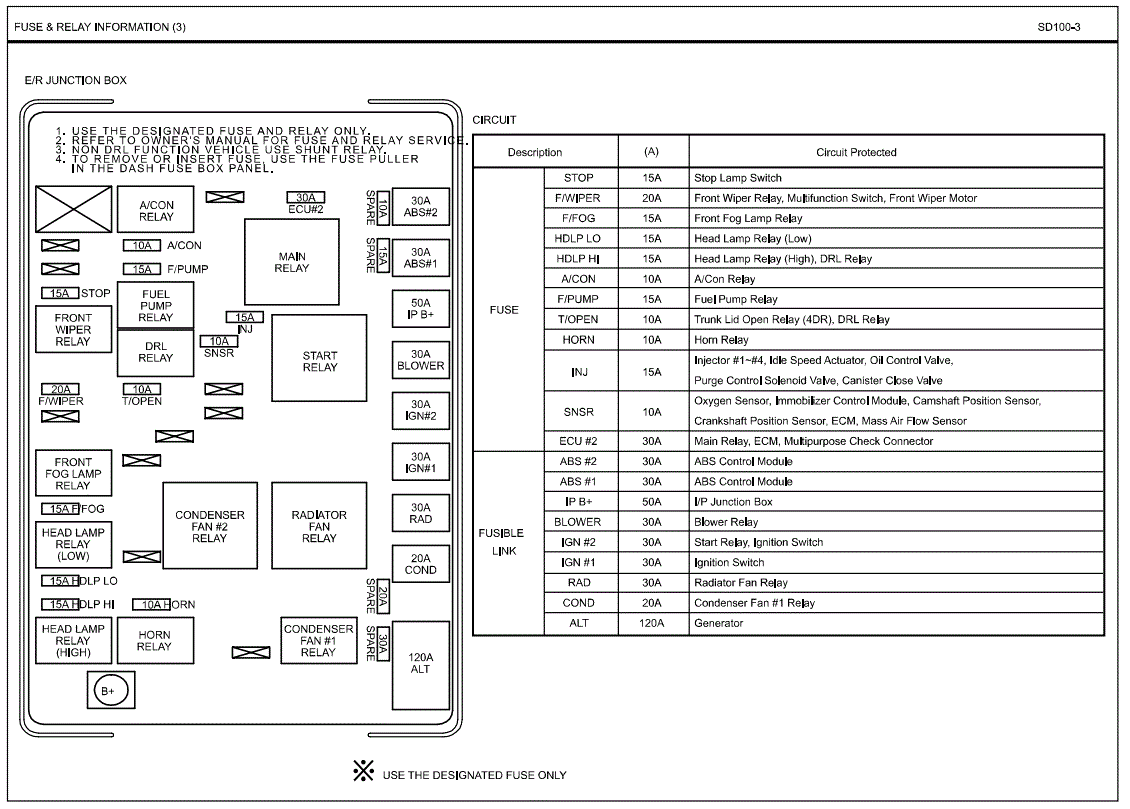

Fig 3: Locating & Identifying Components On Engine Compartment Fuse/Relay Box (1.8L Engine)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Locating & Identifying Components On Engine Compartment Fuse/Relay Box (2.0L Engine)

Courtesy of KIA MOTORS AMERICA, INC.
