Seat Back Frame Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the recliner cover, knob and height knob (See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT  ).

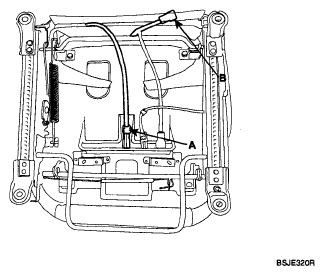

  2. Disconnect the airbag connect (A), heater connect (B).
    Fig 1: Identifying Airbag Connect And Heater Connect
    G04863445Courtesy of KIA MOTORS AMERICA, INC.

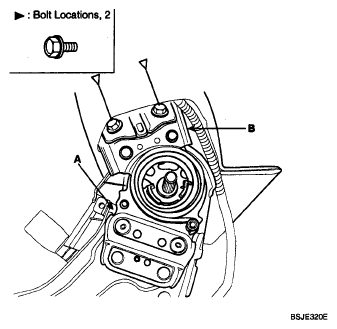

  3. Disconnect the seat back frame (B) from seat track assembly (A).
    Fig 2: Identifying Seat Back Frame And Seat Track Assembly
    G04863434Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the seat back cover (See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT  ).
  5. Remove the head rest and head rest guide (See SEAT CUSHION COVER REPLACEMENT  ).
  6. Remove the seat back cover and sponge, from frame (See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT  ).
  7. After loosening seat back frame mounting bolts, remove the seat back frame (A).
    NOTE:
    • Remove the side air bag for replacing side air bag installation seat.
    • Be fore service, be fully aware of precaution and service procedure relevant to air bag.
    Fig 3: Identifying Seat Back Frame And Mounting Bolts
    G04863447Courtesy of KIA MOTORS AMERICA, INC.
  8. Installation is the reverse of removal.
